  11. Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

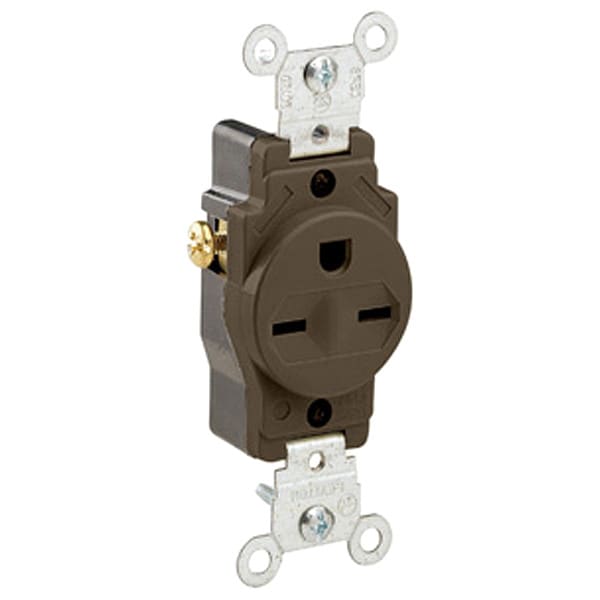

Leviton Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5029 - main

Straight Blade Receptacle, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5029

  • Zoro # G304393300

product price: $4.49
/ea
Sold in multiples of 2 for $8.98

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5029
Zoro #
G304393300
UPC #
07847720750
Country of Origin
Mexico

Dimensions

Face Plate Height
2.4 in
Face Plate Width
1.3 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Side
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
Material
Nylon (Body and Face)
HP
1 1/2 hp
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
6-15R
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Market
Commercial
Housing Material
Nylon
Grade
Federal Specification
GFCI
No
Horsepower Rating
1 1/2 hp
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Number of Outlets
1
Includes
Strap Material
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1-1/2 HP
Feature 4
Smooth Face
Terminal Screws
Brass 8-32
Terminal Accom.
14-10 AWG
Grounding Screw
Brass 8-32
Termination
Side Wire
Line Contacts
Brass Triple Wipe .031 Thick
Strap Material
Zinc-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Wire
3
Pole
2
CSA C22.2 No. 42
File 152105
UL498
File E13399
Flammability
Rated V-2 per UL 94
Device Type
Single Receptacle Outlet
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Body Material
Nylon
Face Material
Nylon
Current Limiting
Full Rated Current
ANSI
C-73
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40°C to 60°C

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
