  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

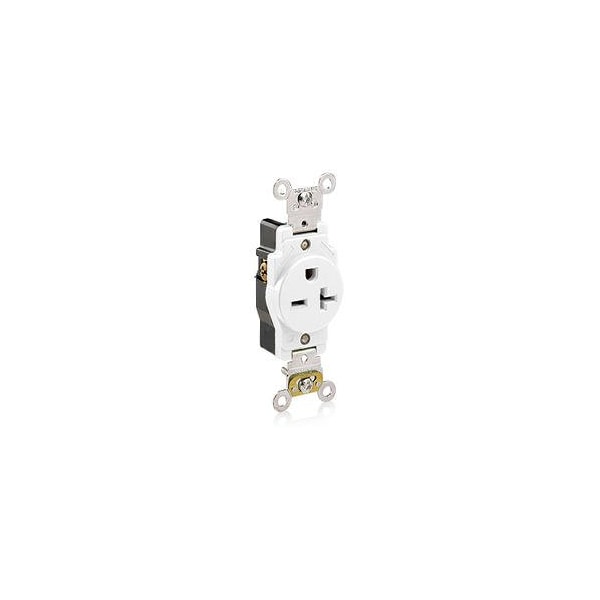

Leviton Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5461-W - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5461-W

  • Zoro # G316091546

product price: $14.89
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5461-W
Zoro #
G316091546
UPC #
078477479384
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
ANSI-C-73, CSA C22.2 No. 42 File 152105, NEMA WD-6, UL 498, File E13399, UL FED SPEC WC-596 File E13399
Number of Gangs
1
Number of Outlets
1
Contact Material
Brass
Housing Material
Nylon
Horsepower Rating
2 hp
Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
For Environment
Food and Beverage, Oily/Greasy
Market
Industrial
Features
Smooth Face
Maximum Operating Temperature
60 Degrees C
Cover Type
Screw-On Cover
GFCI
No
NEMA Enclosure Rating
Not Rated

Description

Single Receptacle Outlet
