  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

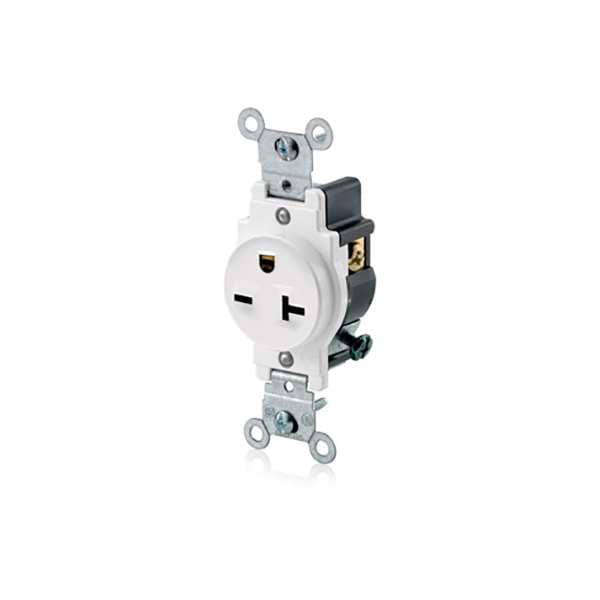

Leviton Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5821-W - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5821-W

  • Zoro # G304256056

product price: $5.19
/ea
Sold in multiples of 10 for $51.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5821-W
Zoro #
G304256056
UPC #
07847724987
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.4 in
Face Plate Height
2.4 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-2 and WD-6, NOM 057, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
Outlet Type - Plugs and Receptacles
Single
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Side
HP
2 hp
Sub-Category
Single Receptacles
Material
Nylon (Body and Face)
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
GFCI
No
Grade
Federal Specification
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Connection Orientation
Straight
Housing Material
Nylon
Horsepower Rating
2 hp
Number of Outlets
1
Cover Type
No Cover
Market
Commercial
UL 94 Flammability Rating
V-2
Line Contacts
Brass Double Wipe .031 Thick
Current Limiting
Full Rated Current
At Rated Voltage
2 HP
Strap Material
Zinc-Plated Steel
Operating Temperature
-40°C to 60°C
Grounding Screw
Brass 8-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 2000V per UL498
Device Type
Single Receptacle Outlet
Pole
2
ANSI
C-73
Face Material
Nylon
Body Material
Nylon
Wire
3
Terminal Screws
Brass 8-32
UL498
File E13399
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
CSA C22.2 No. 42
File 152105
Termination
Side Wire
Flammability
Rated V-2 per UL 94

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
