  11. Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

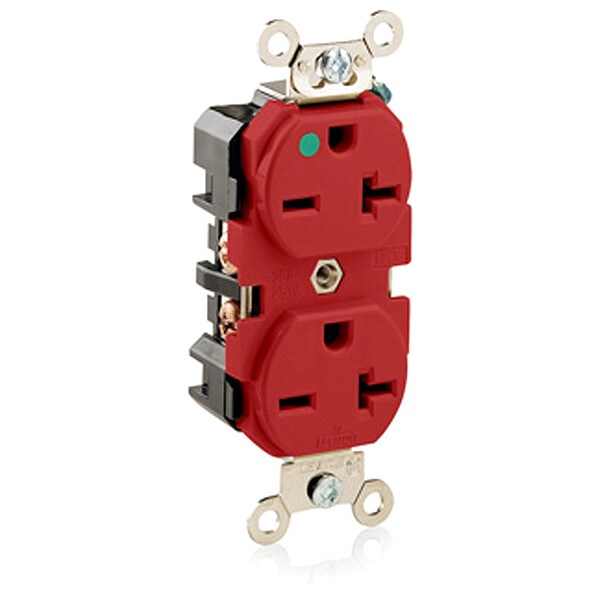

Leviton Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 8400-R - main

Straight Blade Receptacle, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 8400-R

  • Zoro # G204256002

product price: $26.29
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8400-R
Zoro #
G204256002
UPC #
07847749260
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Red
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG
Resistance Properties
Abuse Tolerance
Flange Type
Non-Flanged
HP
2 hp
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
6-20R
Sub-Category
Duplex Receptacles
Material
Nylon (Body and Face)
Application Environment
Heavy-Duty Hospital Grade
Polarized
Yes
Number of Outlets
2
Connection Orientation
Straight
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Housing Material
Nylon
UL 94 Flammability Rating
V-2
GFCI
No
Horsepower Rating
2 hp
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
140 Degrees F
Strap Material
Brass
Flammability
Rated V-2 per UL94
Terminal Accom.
14-10 AWG
Dielectric Voltage
Withstands 2000V per UL498
Ground Clips
Nickel-Plated Brass
Clamp Nuts
Nickel-Plated Brass
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Body Material
Nylon
Pole
2
Current Limiting
Full Rated Current
Wire
3
Grounding Screw
Nickel-Plated Brass 8-32
Screw Terminal Torque
14-18 in-lbs
Face Material
Nylon
Operating Temperature
-40°C to 60°C
CSA C22.2 No. 42
File 152105
UL498HG
File E13399
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
Nickel-Plated Brass Triple-Wipe .031 Thick
Termination
Back or Side Wire
Terminal Screws
Nickel-Plated Brass 10-32

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
