  11. Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

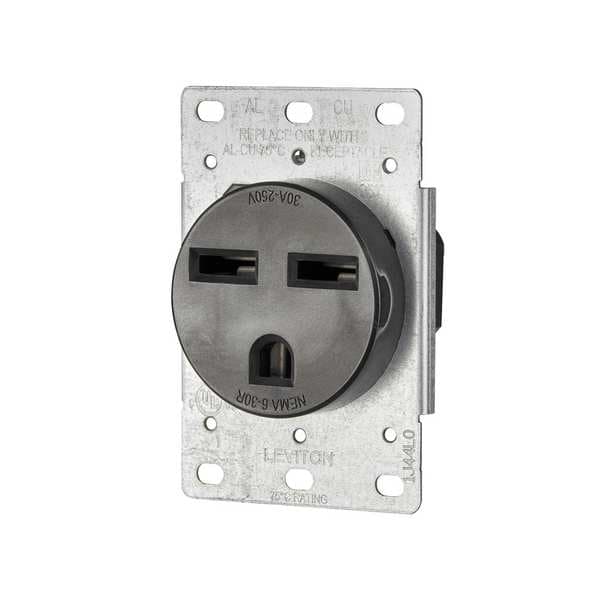

Leviton Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5372-S00 - main

Straight Blade Receptacle, 6-30R, 30 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5372-S00

  • Zoro # G004393211

product price: $15.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5372-S00
Zoro #
G004393211
UPC #
07847769539
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-30R
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
ANSI C73, C22.2 No. 14, C22.2 No. 65, CSA C22.2 No. 42, File E13399, NEMA WD-6, UL 486E, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Material
Thermoplastic (Body and Face)
Sub-Category
Single Receptacles
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
6-30R
HP
2 hp
Mounting Type - Plugs and Receptacles
Flush
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Single
Cover Type
No Cover
Housing Material
Thermoplastic
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Number of Outlets
1
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Market
Industrial
Horsepower Rating
2 hp
UL 94 Flammability Rating
V-2
Contact Material
Brass
Includes Mounting Hardware
Yes
GFCI
No
Flammability
Rated V-2 per UL 94
Body Material
Polypropylene
At Rated Voltage
2 HP
Terminal Accom.
#4 AWG
Strap Material
Galvanized Steel
UL
UL 498, UL 486E
Pole
2
Operating Temperature
-40°C to 60°C
ANSI
C73
Terminal ID
Brass screws = Hot; Green screw = Ground
Dielectric Voltage
Withstands 2000V per UL498
Wire
3
Face Material
Polypropylene
Current Limiting
Full Rated Current
CSA
22.2 No 42, C22.2 No.14, C22.2 No.65
Line Contacts
Brass Double-Wipe
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 6-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
