  11. Straight Blade Receptacle, 6-50R, 50 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

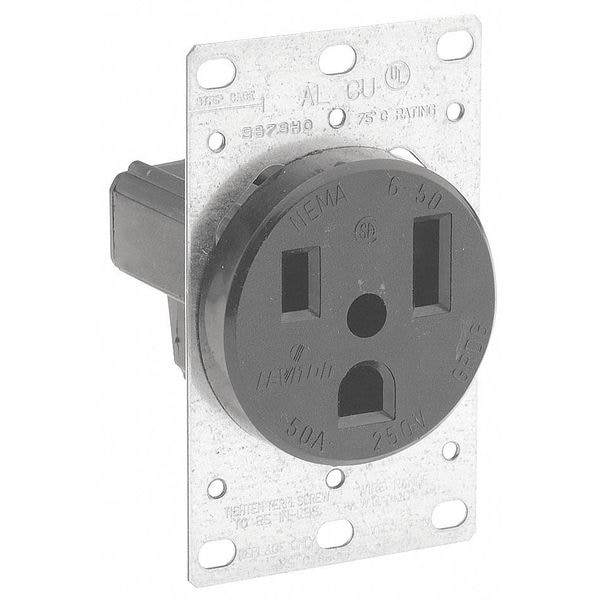

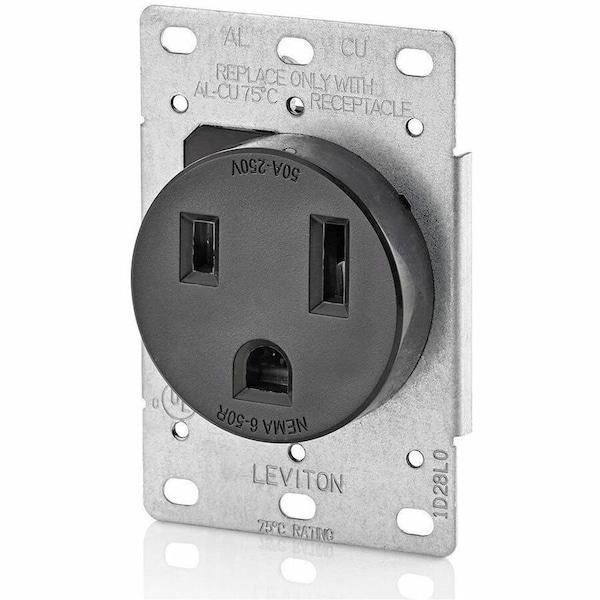

Leviton Straight Blade Receptacle, 6-50R, 50 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5374-S00 - main

Straight Blade Receptacle, 6-50R, 50 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5374-S00

  • Zoro # G104393234

product price: $17.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
6-50R
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5374-S00
Zoro #
G104393234
UPC #
07847769540
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
6-50R
Current Rating
50 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
ANSI C73, C22.2 No. 14, C22.2 No. 65, CSA C22.2 No. 42, File E13399, NEMA WD-6, UL 486E, UL 498
Flange Type
Non-Flanged
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Side
HP
3 hp
NEMA Receptacle Configuration - Plugs and Receptacles
6-50R
Outlet Type - Plugs and Receptacles
Single
Sub-Category
Single Receptacles
Mounting Type - Plugs and Receptacles
Flush
Material
Thermoplastic (Body and Face)
Number of Outlets
1
Includes Mounting Hardware
Yes
Cover Type
No Cover
Market
Industrial
Horsepower Rating
3 hp
Polarized
Yes
Connection Orientation
Straight
Housing Material
Thermoplastic
Grade
Federal Specification
GFCI
No
Line Contacts
Brass Double-Wipe
UL
UL 498, UL 486E
Wire
3
Body Material
Polypropylene
Current Limiting
Full Rated Current
Terminal ID
Brass screws = Hot; Green screw = Ground
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
#4 AWG
Flammability
Rated V-2 per UL 94
Face Material
Polypropylene
Pole
2
At Rated Voltage
3 HP
Strap Material
Galvanized Steel
CSA
22.2 No 42, C22.2 No.14, C22.2 No.65
Operating Temperature
-40°C to 60°C
ANSI
C73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 6-50R, Number of Poles 2, Number of Wires 3, Phase Three, Polarized Yes, Receptacle Type Single, Standards ANSI C73, C22.2 No. 14, C22.2 No. 65, File E13399, CSA C22.2 No. 42, NEMA WD-6, UL 486E, UL 498, Voltage Rating 250V AC, Wire Connection Type Screw Terminals
