  11. Straight Blade Receptacle, 7-15R, 15 A, 277V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

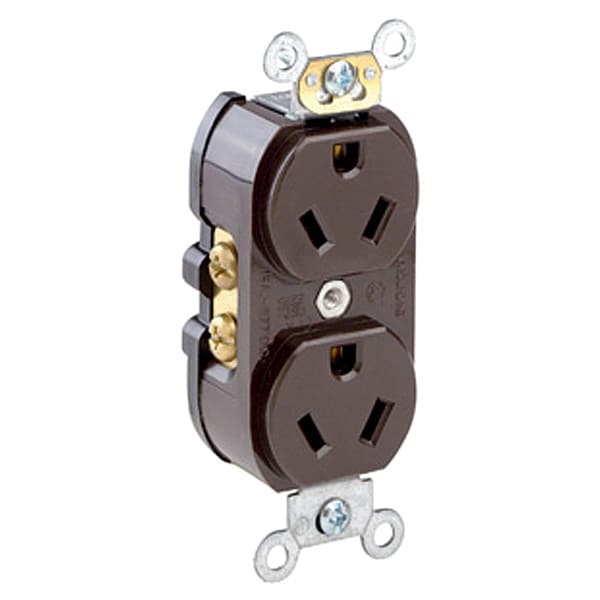

Leviton Straight Blade Receptacle, 7-15R, 15 A, 277V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 5585 - main

Straight Blade Receptacle, 7-15R, 15 A, 277V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 5585

  • Zoro # G604256008

product price: $12.79
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5585
Zoro #
G604256008
UPC #
07847724440
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Width
1.5 in
Overall Depth
1.1 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI (C-73), CSA C22.2 No. 42 (File 152105), NEMA (WD-2, NOM Certified (057), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399), WD-6)
Flange Type
Non-Flanged
Material
Nylon (Body and Face)
HP
2 hp
Application Environment
Commercial
NEMA Receptacle Configuration - Plugs and Receptacles
7-15R
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Grade
Federal Specification
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
2 hp
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Cover Type
No Cover
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
GFCI
No
Market
Commercial
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Housing Material
Nylon
Number of Outlets
2
Terminal Screws
Brass 8-32
Screw Terminal Torque
14-18 in-lbs
Pole
2
Current Limiting
Full Rated Current
Strap Material
Zinc-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Ground Clips
Brass-Plated
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
2 HP
CSA C22.2 No. 42
File 152105
Operating Temperature
-40°C to 60°C
Body Material
Nylon
Terminal Accom.
14-10 AWG
Face Material
Nylon
UL498
File E13399
Flammability
Rated V-2 per UL 94
Grounding Screw
Brass 8-32
ANSI
C-73
Wire
3
Termination
Back & Side
Line Contacts
Brass Double Wipe .031 Thick

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA C22.2 No. 42: File 152105, Voltage Rating 277V AC
