  11. Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

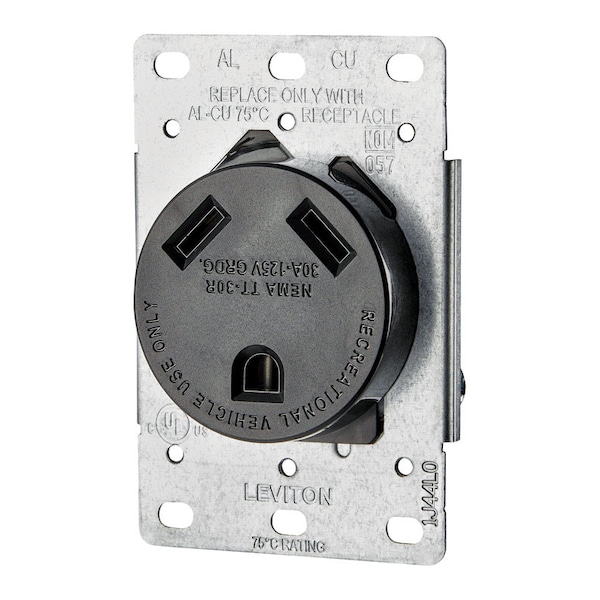

Leviton Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 07313-S00 - main

Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 07313-S00

  • Zoro # G700016520

product price: $14.55
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
TT-30R
Current Rating
30 A
Voltage Rating
125V AC
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
07313-S00
Zoro #
G700016520
UPC #
78477695296
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
TT-30R
Current Rating
30 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
Standards
UL 486E, UL 498
Flange Type
Non-Flanged
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Terminal ID
Brass screw = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Dielectric Voltage
Withstands 2000V per UL498
Current Limiting
Full Rated Current
Terminal Accom.
#4 AWG
Operating Temperature
-40°C to 60°C
Wire
3
Pole
2
At Rated Voltage
2 HP
UL
UL 498, UL 486E
Line Contacts
Brass Double-Wipe
ANSI
C73
Flammability
Rated V-2 per UL 94
CSA
22.2 No 42, C22.2 No.14, C22.2 No.65
Strap Material
Galvanized Steel
Face Material
Polypropylene
Body Material
Polypropylene

Description

Built of durable thermoplastic, Leviton Power Receptacles come equipped with heavy-gauge, double-wire copper alloy contacts. Flush mount receptacles fit Leviton's wide range of 2.15 inch diameter wallplates and mounting hardware is included. For use in Recreational Vehicles.


  • • Flush mount
  • • Side wired
  • • Steel strap material
  • •
  • •
