Shop LEVITON

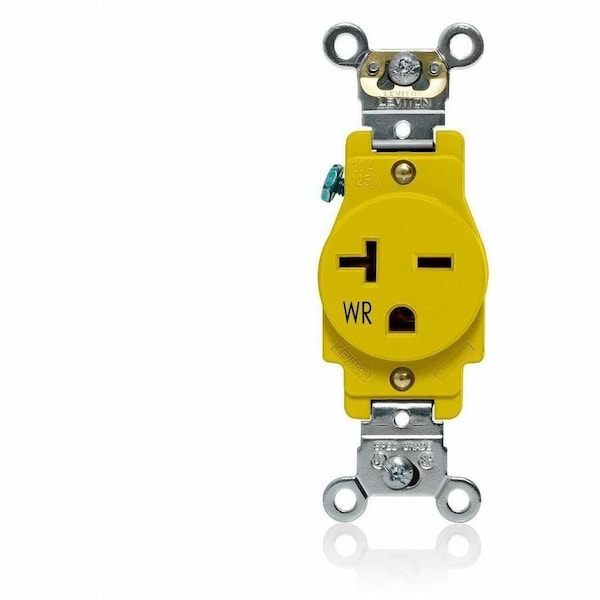

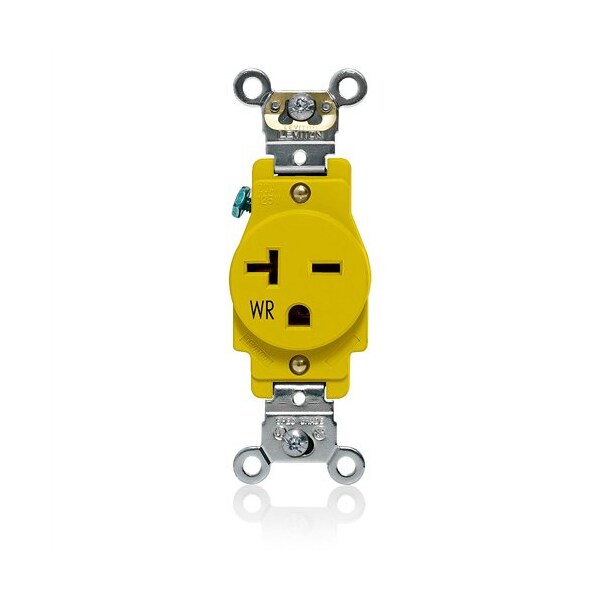

StrghtBladeRcptcl, 20A, 125VAC, Ylw, Nylon

  • Mfr # W5461-Y

  • Zoro # G322728771

product price:
$
19.15
/ea

Key Features

Number of Outlets
1
Features
Brass Self-Grounding Clip is Permanently Staked On for Secure and Reliable Performance, Internal Wiring Clamps Allow for Back and Side Wiring, and a Fast, Easy Installation, Nickel-Plated Straps and Stainless Steel Screws
Polarized
Yes
Grade
General Use
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
W5461-Y
Zoro #
G322728771
UPC #
-
Country of Origin
Mexico
Number of Outlets
1
Features
Brass Self-Grounding Clip is Permanently Staked On for Secure and Reliable Performance, Internal Wiring Clamps Allow for Back and Side Wiring, and a Fast, Easy Installation, Nickel-Plated Straps and Stainless Steel Screws
Polarized
Yes
Grade
General Use
Voltage Rating
125V AC
Contact Material
Brass
Housing Color
Yellow
Number of Gangs
1
Number of Poles
2
Surge Protection
No
Horsepower Rating
1 1/2 hp
Grounding
Grounded
Receptacle Type
Single
IP Rating
Not Rated
Number of Wires
3
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Resistance Properties
Weather Resistant
Current Rating
20 A
Number of Wall Plates Included
0
Item
Straight Blade Receptacle
Maximum Operating Temperature
75 Degrees C
Mount Type
Flush
Receptacle Face Type
Smooth
Minimum Operating Temperature
-40 Degrees C
Flange Type
Non-Flanged
NEMA Receptacle Configuration
6-20R
Phase
Single
Standards
CSA C22.2 No. 42, Fed. Spec. W-C-596, NOM, UL 498
Housing Material
Nylon
AFCI
No
GFCI
No
Market
Commercial, Industrial
Wiring Method
Back/Side
Shrouded
No

Description

Straight Blade Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Weather Resistant, Standards CSA C22.2 No. 42, Fed. Spec. W-C-596, NOM, UL 498
