Surge Protection Device, 3 Phase, 120/240V

This item is Discontinued.

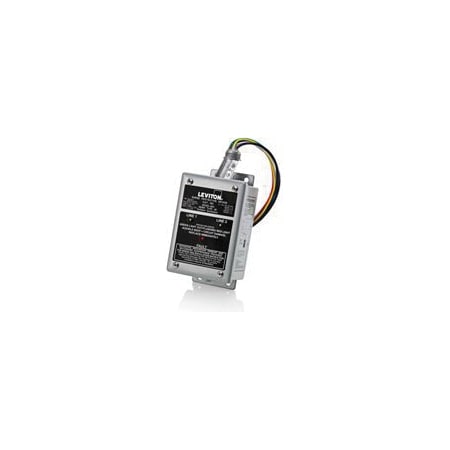

Leviton Surge Protection Device, 3 Phase, 120/240V 42412-DS3

Surge Protection Device, 3 Phase, 120/240V (Discontinued)

Mfr # 42412-DS3
Zoro # G4080378

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Specifications

Product Information

MFR #

42412-DS3

Zoro #

G4080378

UPC #

78477864883

Country of Origin

Mexico

Dimensions

Length

7 1/2 in

Depth

3 1/4 in

Width

4 1/4 in

Details

Item

Surge Protection Device

Mounting Style

Flush/Surface

Phase

Voltage

120/240V

Voltage Protection Rating

700V (N-G), 800V (L-N), 1000V (L-L), 1200V (L-G)

Number of Wires

4 Wires

Modes of Protection

L-G, L-L, L-N, N-G

Max. Surge Current per Mode

160 kA

Max. Surge Current per Phase

160 kA

Nominal Discharge Current

3 kA

Short Circuit Current Rating

100kA

Filtering

Yes

Max. Continuing Operating Voltage

150V AC

Enclosure NEMA Rating

NEMA 3R

Enclosure Material

Steel

Wire Gauge

12 AWG

Standards

UL1449 3rd Edition

Type

Type 2 SPD

Modular / Nonmodular

Nonmodular

Mounting Type

Panel

Noise Attenuation

-30dB to -40dB @ 10K to 10MHz

Mcov N-G

150

Recommended Circuit Breaker Rating

30A, 120/240V

ANSI/IEEE Category A, B & C

C-62.41 & 62.45

UL1449 Impluse 6kV/500A L-N/N-G/L-L

400/500/800

Relative Humidity

5% to 95% non-condensing

UL1449 3rd Edition

cULus Listed Type 2

Frequency

50/60Hz

Operating Temperature

-10°C to 60°C

Diagnostics

LED

Surge Technology

40mm MOV Design

Noise Rejection

-30 to -40 dB at 10kHz-10MHz

EMI/RFI Noise Rejection

(-30 to -40 @ 10K - 10MHz)

Voltage Configuration

120/208/240 V, Hi-Leg Delta

Remote Monitoring

Dry Contact Leads-N.O./N.C. Form C Rated at 7Amps @ 240VAC or 30 VDC

Maximum Surge Current, Per Mode (Per Phase)

80kA (160kA)

Mcov L-G

300

Connection Type

Parallel - Hardwired via 12 AWG Wire

Mcov L-N

150

Storage Temperature Range

-20C to 85C

Flammability

Rated V-2 per UL 94

Mcov L-L

254

Color

Gray

Electrical Ratings

30 A, 120/240 VAC

Type Of Indicators

Noise Filtering

Application

Commercial

Connection

Parallel Hardwired via 12AWG wire

Peak Surge Current

80 kA

Series

42000

Indicator Type

LED/Noise Filtering

Standard

ANSI\IEEE (Category C-62.41, C-62.45);NEMA;cULus Listed (1449)

Environmental Conditions

Storage temperature (-20 to +85 DEGC);Humidity (5 to 95% Non-Condensing);Flammability (Rated UL 94 V-2)

Description

120/240/120 Volt Hi-Leg Split Phase Delta Panel Protector, Enhanced Noise Filtering, NEMA 3R Enclosure
