  11. Surge Suppressers Supprs Surg Ig15Ahos Wh

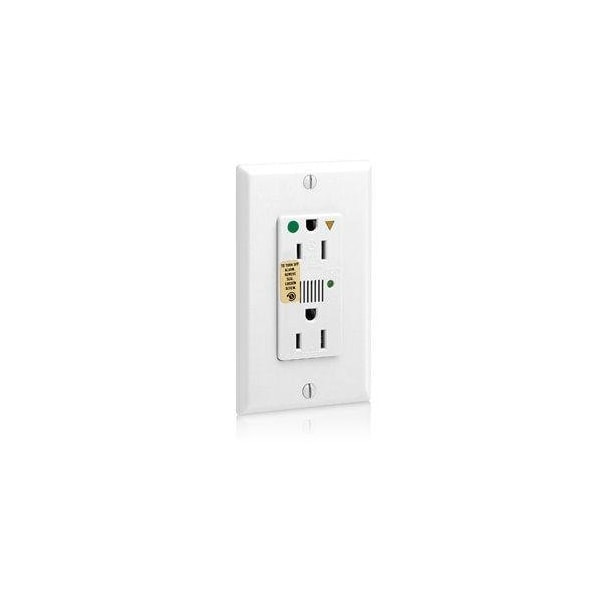

Leviton Surge Suppressers Supprs Surg Ig15Ahos Wh 8280-IGW - main

Surge Suppressers Supprs Surg Ig15Ahos Wh

  • Mfr # 8280-IGW

  • Zoro # G0824647

product price: $56.89
/ea

Key Features

Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8280-IGW
Zoro #
G0824647
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
1.6 in
Face Plate Width
1.8 in
Minimum Wire Size
14 AWG
Face Plate Height
2.7 in
Overall Depth
1.6 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.8 in

Details

Item
Surge Suppressor
Mounting Style
Surface
Phase
1
Voltage
125V AC
Number of Poles
2
Voltage Protection Rating
600V (L-N, N-G), 700V (L-G)
Number of Wires
3 Wires + Ground
Modes of Protection
L-G, L-N, N-G
Max. Surge Current per Mode
24 kA
Max. Surge Current per Phase
24 kA
Short Circuit Current Rating
5kA
Filtering
Yes
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
Not Rated
Enclosure Material
Nylon
Includes
Mounting Hardware
Standards
ANSI C73, CSA Certified C22.2 No 42 File 152105, NEMA: WD-6, NOM: 057, UL 498HG File E13399
Number of Outlets
2
Features
Audible Alarm
NEMA Receptacle Configuration
NEMA 5-15R
Voltage Rating
125V AC
Wiring Method
Back, Side
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
Visual Indicator Lights
Power Connected
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Housing Material
Nylon
Housing Color
White
For Location
Outdoor
Current Rating
15 A
Receptacle Type
Duplex
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Grade
Hospital Grade
Wire Connection Type
Screw Terminals
Market
Commercial
Maximum Surge Current
24 kA
Surge Protection
Yes
Horsepower Rating
1/2 hp
Flange Type
Non-Flanged
Cover Type
No Cover
Mount Type
Surface
Polarized
Yes
GFCI
No
AFCI
No
Hub Type
Feed Through
NEMA Enclosure Rating
Not Rated
Number of Gangs
1
Shrouded
Yes
Nominal Discharge Current
5kA
Wire Gauge
14-10 AWG

Description

Straight Blade Decora Duplex Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
