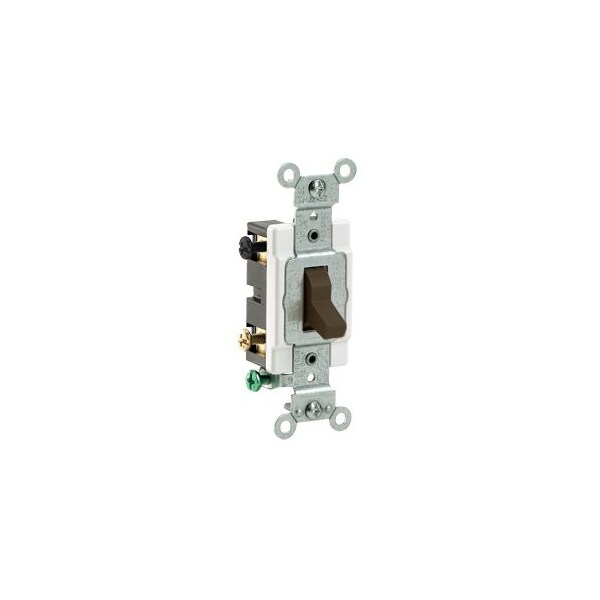

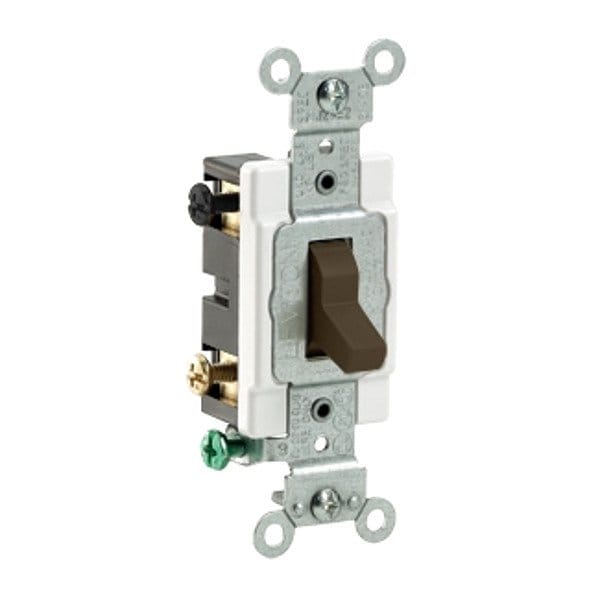

Toggle 4-Way, 20 Amp
- Mfr # CS420-2
- Zoro # G022982350
product price:Â
$
22.15
/ea
Key Features
Horsepower Rating
1 hp
Contact Material
Silver Alloy
Market
Commercial
Grounding
Grounded
Strap Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CS420-2
- Zoro #
- G022982350
- UPC #
- 078477815861
- Country of Origin
- Mexico
- Horsepower Rating
- 1 hp
- Contact Material
- Silver Alloy
- Market
- Commercial
- Grounding
- Grounded
- Strap Material
- Steel
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Item
- Toggle 4-Way, 20 Amp
- Wiring Method
- Side
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Minimum Operating Temperature
- -40 Degrees C
- Housing Material
- Thermoplastic
- Voltage Rating
- 120/277V AC
- Maximum Operating Temperature
- 65 Degrees C
- Switch Material
- Thermoplastic
- Illuminated
- No
- Switch Function
- Maintained
- Switch Type
- 4-Way
- Wire Connection Type
- Screw Terminals
- Number of Switches
- 1
- Current Rating
- 20 A
- Color
- Brown
Description
Toggle 4-Way, 20 Amp, Color Brown, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
