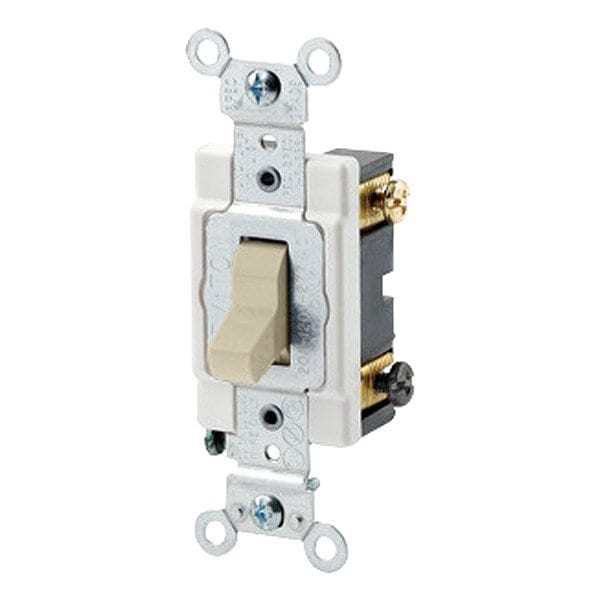

Toggle 4-Way, Ivory, 20A , 120/277V
- Mfr # CSB4-20I
- Zoro # G022982305
product price:Â
$
22.99
/ea
Key Features
Contact Material
Silver Alloy
Market
Commercial
Switch Height
2.2 in
Minimum Wire Size
14 AWG
Grounding
Grounded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CSB4-20I
- Zoro #
- G022982305
- UPC #
- 078477816042
- Country of Origin
- Mexico
- Contact Material
- Silver Alloy
- Market
- Commercial
- Grounding
- Grounded
- Horsepower Rating
- 1 hp
- Maximum Operating Temperature
- 65 Degrees C
- Minimum Operating Temperature
- -40 Degrees C
- Strap Material
- Steel
- Illuminated
- No
- Voltage Rating
- 120/277V AC
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Switch Material
- Thermoplastic
- Housing Material
- Thermoplastic
- Current Rating
- 20 A
- Wire Connection Type
- Screw Terminals
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Switch Type
- 4-Way
- Number of Switches
- 1
- Wiring Method
- Back/Side
- Switch Function
- Maintained
- Color
- Ivory
- Item
- Toggle 4-Way, 20 Amp
- Wire Color
- Ivory
Dimensions
- Switch Height
- 2.2 in
- Minimum Wire Size
- 14 AWG
- Overall Width
- 1.3 in
- Maximum Wire Size
- 10 AWG
- Switch Depth
- 1 in
- Overall Height
- 4.1 in
- Fits Chest Size
- 10-Year Limited, Withstands 1,500V for 1 minute
Description
Toggle 4-Way, 20 Amp, Color Ivory, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
