Shop LEVITON

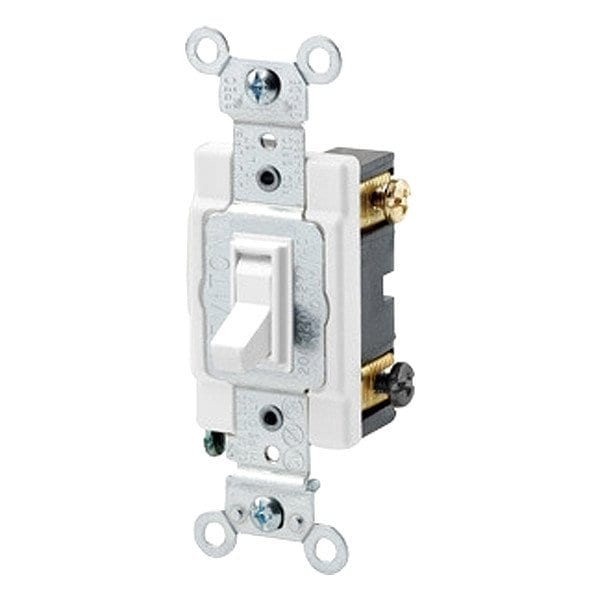

Toggle Framed 3-Way, 20 Amp

  • Mfr # 54523-2W
  • Zoro # G322982289
product price:
$
11.85
/ea

Key Features

Overall Width
1.3 in
Contact Material
Silver Alloy
Voltage Rating
120/277V AC
Market
Commercial
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
54523-2W
Zoro #
G322982289
UPC #
078477125519
Country of Origin
Mexico
Contact Material
Silver Alloy
Voltage Rating
120/277V AC
Market
Commercial
Wiring Method
Side
Illuminated
No
Maximum Operating Temperature
65 Degrees C
Housing Material
Thermoplastic
Item
Toggle Framed 3-Way, 20 Amp
Current Rating
20 A
Switch Function
Maintained
Wire Connection Type
Screw Terminals
Horsepower Rating
1 hp
Number of Switches
1
Minimum Operating Temperature
-40 Degrees C
Features
10-Year Limited, Withstands 1,500V for 1 minute
Standards
ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
Color
White
Switch Material
Thermoplastic
Grounding
Grounded
Strap Material
Steel
Switch Type
3-Way

Description

Toggle Framed 3-Way, 20 Amp, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type 3-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
