Shop LEVITON

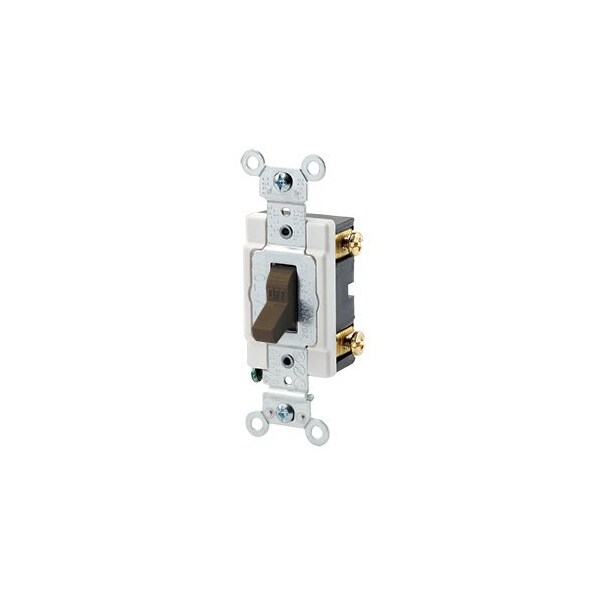

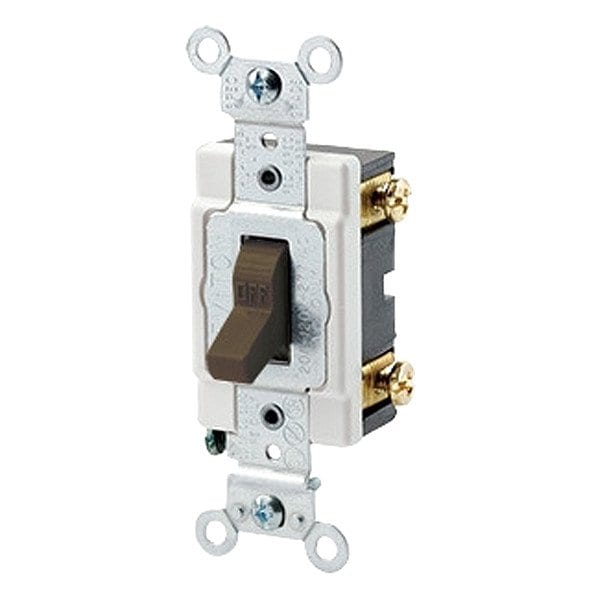

Toggle Single-Pole, 20 A, 120/277V

  • Mfr # 1221-S

  • Zoro # G822982178

product price:
$
4.29
/ea

Key Features

Maximum Wire Size
10 AWG
Features
10-Year Limited, Withstands 1,500V for 1 minute
Market
Industrial
Horsepower Rating
1 hp
Maximum Operating Temperature
65 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1221-S
Zoro #
G822982178
UPC #
078477240601
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Width
1.3 in
Minimum Wire Size
14 AWG
Switch Depth
1 in
Switch Height
2.1 in
Overall Height
4.1 in

Details

Features
10-Year Limited, Withstands 1,500V for 1 minute
Market
Industrial
Horsepower Rating
1 hp
Maximum Operating Temperature
65 Degrees C
Voltage Rating
120/277V AC
Color
Brown
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Switch Function
Maintained
Switch Material
Thermoplastic
Strap Material
Steel
Housing Material
Thermoplastic
Number of Switches
1
Switch Type
Single Pole
Illuminated
No
Contact Material
Silver Alloy
Wiring Method
Back/Side
Standards
ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
Item
Toggle Single-Pole, 20 Amp
Wire Connection Type
Screw Terminals
Current Rating
20 A

Description

Toggle Single-Pole, 20 Amp, Color Brown, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals
