  13. Toggle Switch 20A 120 277V Lckg 3Way Sw Iv

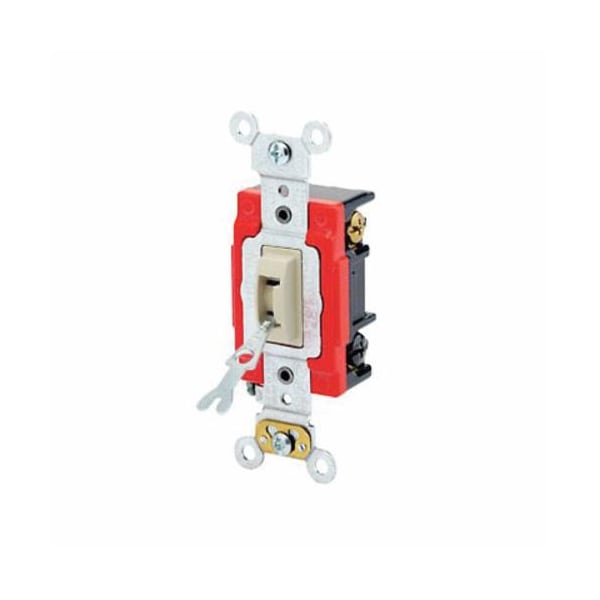

Leviton Toggle Switch 20A 120 277V Lckg 3Way Sw Iv 1223-2IL - main

Toggle Switch 20A 120 277V Lckg 3Way Sw Iv

  • Mfr # 1223-2IL

  • Zoro # G4024466

product price: $22.45
/ea

Key Features

Width
1.62 in
Mounting
Box
Height
4.19 in
Color
Ivory
Connection
Back Wired;Side Wired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1223-2IL
Zoro #
G4024466
UPC #
78477358481
Country of Origin
Mexico

Dimensions

Width
1.62 in
Height
4.19 in
Length
1.69 in
Dimensions
46 in H x 1.31 in W x 13 in D

Details

Mounting
Box
Color
Ivory
Connection
Back Wired;Side Wired
Voltage
120/277 VAC
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Screw Terminal Torque
14-18 in-lbs
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Operating Temperature
-40°C to 65°C
Flammability
Rated V-2 per UL 94
Amperage
20 A
Function
3-Way
Ground Clips
Brass
ANSI
C-73
Toggle
Polycarbonate
CSA C22.2 No. 111
File #152105
Grade
Extra Heavy-Duty Industrial Specification Grade
Max. Amperage
16 Amp
Endurance
50,000 cycles minimum
Dielectric Voltage
Withstands 1500V for 1 minute
NEMA
WD-1 & WD-6
Grounding Screw
Brass 8-32
Grounding
Self-Grounding
Base Material
Thermoplastic
Cover Material
Thermoplastic
Contact Material
Silver Alloy
Termination
Back or Side Wire
Strap Material
.048" Thick Galvanized Steel
Device Type
Tamper-Resistant Toggle Switch
UL Fed Spec WS896E
File #E7458
Terminal Screws
Brass 8-32
UL Standard
UL 20
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
HP Rating
1HP-120V 2HP-240V
Temperature Rise
Maximum 30 degress C rise
Type
Toggle Switch
Number of Poles
1
Power Rating
0.5 hp
Actuator
Key
Environmental Conditions
Flammability (Rated V-2 per UL94)
Application
Commercial
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant
Operating Cycles
50000 Cycles
Terminal Type
Back/Side Wired Screw

Description

20-Amp, 120/277-Volt, Toggle Locking 3-Way AC Quiet Switch, Extra Heavy Duty Grade, Self Grounding, Back and Side Wired, Ivory
