  13. Toggle Switch 20A 120/277V 3-Way Tgle Comm Lt Alm

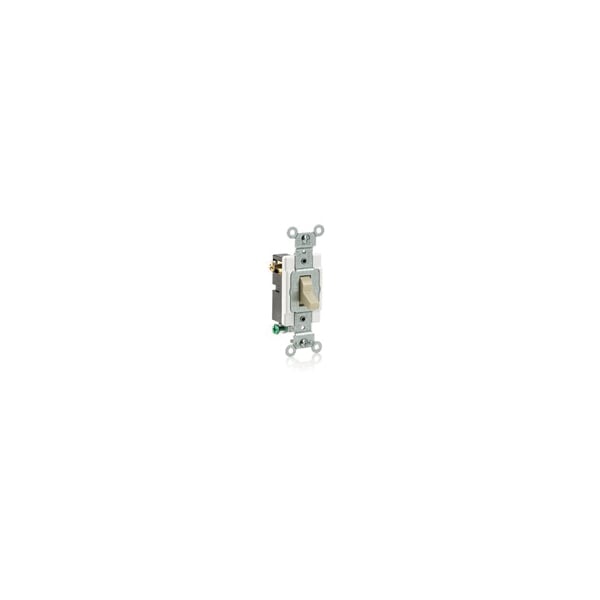

Leviton Toggle Switch 20A 120/277V 3-Way Tgle Comm Lt Alm CS320-2T - main

Toggle Switch 20A 120/277V 3-Way Tgle Comm Lt Alm

  • Mfr # CS320-2T

  • Zoro # G4049578

product price: $5.65
/ea
Sold in multiples of 2 for $11.30

Key Features

Body Material
Thermoplastic
Mounting
Box
Height
10.5000 in
Voltage
120/277 VAC
Connection
Side Wired
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS320-2T
Zoro #
G4049578
UPC #
78477273081
Country of Origin
United States

Dimensions

Height
10.5000 in
Dimensions
46 in H x 1.31 in W x 0.92 in D
Length
17.2500 in

Details

Body Material
Thermoplastic
Mounting
Box
Voltage
120/277 VAC
Connection
Side Wired
Color
Light Almond
Dielectric Voltage
Withstands 1500V for 1 minute
HP Rating
1HP-120V 2HP-240V-277V
Operating Temperature
-40°C to 65°C
Strap Material
Steel
Device Type
Toggle Switch
UL Fed Spec WS896E
File #E7458
Screw Terminal Torque
14-18 in-lbs
Amperage
20 A
Terminal Accom.
14-12 AWG
Actuator Material
Thermoplastic
Flammability
Rated V-2 per UL94
Grounding
Grounding
Standards and Certifications
UL/CSA
Temperature Rise
Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
Function
3-Way
Endurance
50,000 cycles minimum
Max. Amperage
16 Amp
Termination
Side Wire
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Grade
Commercial Specification Grade
Environmental Conditions
Flammability (Rated V-2 per UL94)
Actuator
Toggle
Application
Commercial
Number of Poles
1
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Power Rating
800 W, 1000 VA
Terminal Type
Side Wired
Enclosure
NEMA WD-1/WD-6

Description

20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Commercial Grade, Grounding, Light Almond
