  13. Toggle Switch 20A 120/277V 4-Way Tgle Comm Lt Alm
This item is Discontinued.

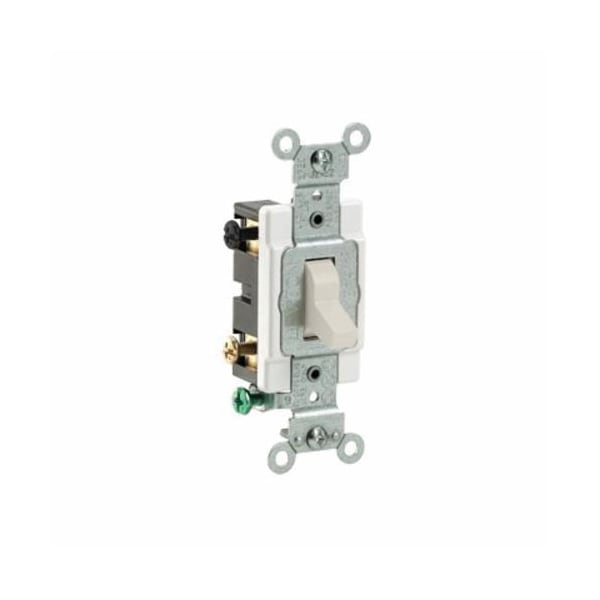

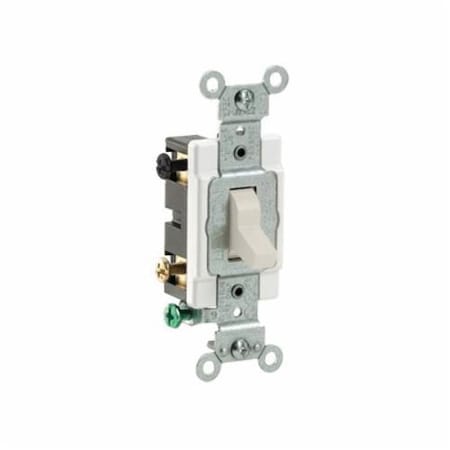

Leviton Toggle Switch 20A 120/277V 4-Way Tgle Comm Lt Alm CS420-2T

Toggle Switch 20A 120/277V 4-Way Tgle Comm Lt Alm (Discontinued)

  • Mfr # CS420-2T
  • Zoro # G4047094
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS420-2T
Zoro #
G4047094
UPC #
78477273142
Country of Origin
Mexico

Dimensions

Height
5.2500 in
Dimensions
46 in H x 1.31 in W x 0.92 in D
Length
7.2500 in

Details

Mounting
Box
Connection
Side Wired
Body Material
Thermoplastic
Color
Light Almond
Voltage
120/277 VAC
Grounding
Grounding
Termination
Side Wire
Amperage
20 A
Actuator Material
Thermoplastic
Function
4-Way
Max. Amperage
16 Amp
Standards and Certifications
UL/CSA
HP Rating
1HP-120V 2HP-240V-277V
Screw Terminal Torque
14-18 in-lbs
Grade
Commercial Specification Grade
Device Type
Toggle Switch
Strap Material
Steel
Power Rating
800 W, 1000 VA
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Application
Commercial
Number of Poles
2
Environmental Conditions
Flammability (Rated V-2 per UL94)
Actuator
Toggle
Enclosure
NEMA WD-1/WD-6
Operating Temperature
-40 to +120 °C
Terminal Type
Side Wired

Description

20 Amp, 120/277 Volt, Toggle 4-Way AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired - Light Almond
