Shop LEVITON

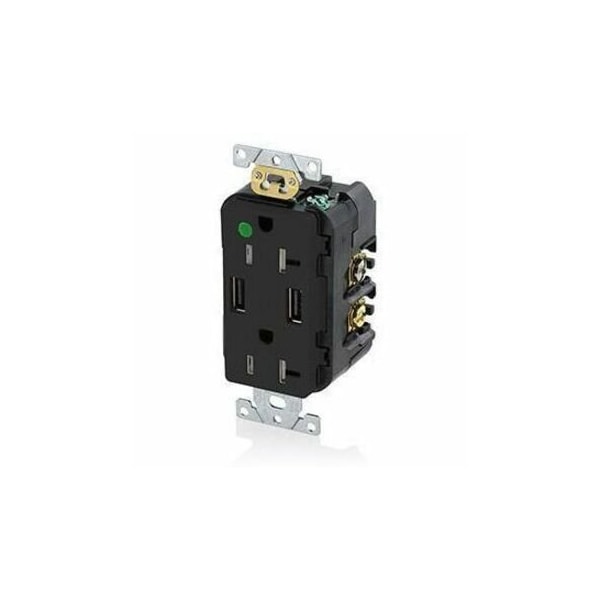

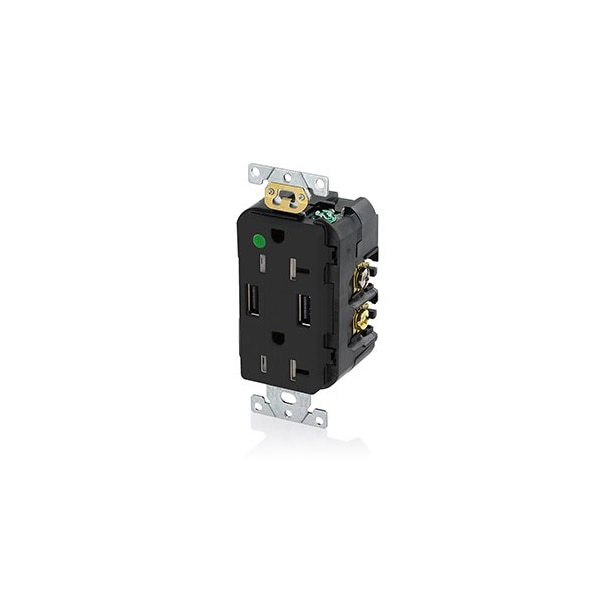

USB Receptacle, 20 A, 1 hp, Black, PBT

  • Mfr # T5832-HGE
  • Zoro # G822586307
product price:
$
40.49
/ea

Key Features

Contact Material
Brass
Standards
CSA, FULS Marking, UL
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
40 Degrees C
Number of Wires
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T5832-HGE
Zoro #
G822586307
UPC #
78477685570
Country of Origin
China
Contact Material
Brass
Standards
CSA, FULS Marking, UL
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
40 Degrees C
Number of Wires
2
Series
Any manufacturer
Housing Color
Black
Resistance Properties
Tamper Resistant
Surge Protection
No
UL 94 Flammability Rating
V-0
Housing Material
PBT
Number of Outlets
2
Current Rating
20 A
Horsepower Rating
1 hp
Voltage Rating
125V AC
Receptacle Type
Duplex
Item
USB Receptacle
Minimum Operating Temperature
-10 Degrees C
USB Standard
2.0
Grounding
Grounded
Number of Poles
2
IP Rating
Not Rated
Mount Type
Flush
Phase
Single
GFCI
No
NEMA Receptacle Configuration
5-20R
Wiring Method
Back/Side
Grade
Hospital Grade
USB Connection Type
A

Description

USB Receptacle, Current Rating 20 A, Housing Color Black, Number of Outlets 2, Number of USB Ports 2, Number of Wires 2, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Face Plate Height 2.79 in, Face Plate Width 1.3 in, GFCI No, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp, Housing Material PBT, IP Rating Not Rated, Maximum Wire Size 12 AWG
