- MFR #
- ODD10-IDI
- Zoro #
- G204395275
- UPC #
- 078477425640
- Country of Origin
- China

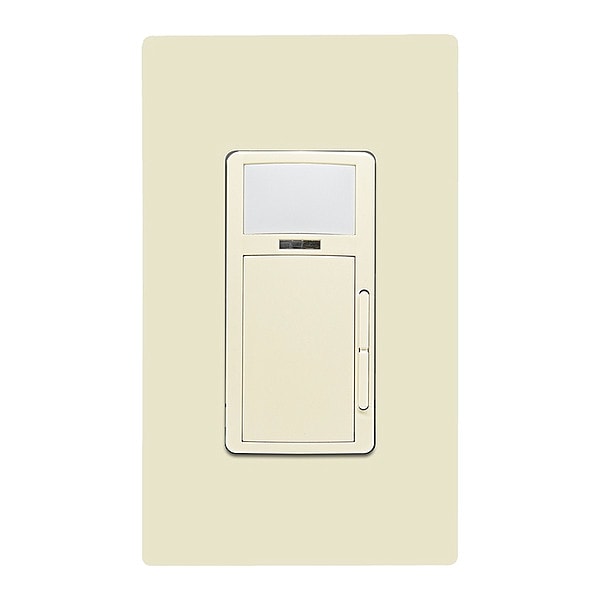

- Item
- Vacancy Dimmer
- Communication Method - Motion Sensing and Dimming
- Hard Wired
- Sensing Technology
- Passive Infrared (PIR)
- Installation Location - Motion Sensor
- Wall Switch Box
- Operating Voltage - Motion Sensing and Dimming
- 120 to 277V AC
- Color - Motion Sensing and Dimming
- White
- Coverage Angle - Motion Sensor
- 180 Degrees
- Use With - Motion Sensing and Dimming
- 0 to 10V Dimming Ballast
- Lighting Technology
- Incandescent, LED
- Description/Special Features
Advanced configuration can be performed using the Leviton Smart Sensor App on any Bluetooth enabled Android or iOS device, Configure dimming options such as Partial-0N, Partial-OFF, and Partial-OFF timeouts, Fits in a standard wallbox and gangable with other units, ODD24-IDW is designed for use with a power pack (OPP20 or OSA20) or other Leviton low voltage (24V) source, Out-of-the-box configuration default mode, Set a security code to lock configuration settings
- Max. Capacity @ 277VAC
- 10A (General Purpose, Standard Ballast), 5A (LED/Electronic Ballast), 6.67A (Tungsten), FLA 3.0A (1/3HP Motor)
- Item - Motion Sensing and Dimming
- Occupancy Sensor; Vacancy Sensor
- Standards
- ASHRAE 90.1, cUL Listed, FCC Approved, ICC, IECC, Title 24, Part 6, UL Listed
- Max. Capacity @ 120VAC
- 10A (General Purpose, LED/Electronic Ballast, Tungsten), 5A (Standard Ballast), 6.67A (1/4 HP Motor)
- Color
- Ivory
- Maximum Detection Distance
- 40 ft
- Minimum Coverage Area
- 400 sq ft
- Maximum Coverage Area
- 1,100 sq ft
- Includes Dimming Switch
- Dimming Switch Included
- Dimming Type
- Full Continuous Dimming
- Load Rating @ 277V AC
- 10A (General Purpose, Standard Ballast), 3A FLA (1/3HP Motor), 5A (LED/Electronic Ballast), 6.67A (Tungsten)
- Coverage Angle
- 180 Degrees
- Load Rating @ 120V AC
- 10A (General Purpose, Standard Ballast), 5.8A FLA, 6.67A (Tungsten), 8A (LED/Electronic Ballast)
- Coverage Type
- Small Motion
- Nightlight
- Yes
- Fan Rated
- Yes
- Number of Buttons
- 2
- Compatible with Series
- 0-10V Dimming Ballast (universal)
- Rated Frequency
- 50/60 Hz
- Sensor Operation
- 0 to 10V Dimming, Occupancy, Photocell, Vacancy
- Includes Wall Plate
- Wall Plate Not Included
- Includes Motion Sensor
- Yes
- Dimming Method
- 0-10V
- Manufacturer Warranty
- 5 yr
- Minimum Operating Temperature
- 32 Degrees F
- Installation Location
- Wall
- Series
- Smart / Decora
- Maximum Operating Temperature
- 104 Degrees F
- Communication Method
- Hard Wired
- Neutral Required
- Yes
- Load Rating
General Purpose @ 120V: 10A - General Purpose @ 277V: 10A - LED/Electronic Ballast @ 120V: 8A, - LED/Electronic Ballast @ 277V: 5A - Standard Ballast @ 120V: 10A - Standard Ballast @ 277V: 10A - Tungsten @ 120V: 6.67A - Tungsten @ 277V: 6.67A - Motor @ 120V: 1/4HP (FLA 5.8A) - Motor @ 277V: 1/3HP (FLA 3.0A)
- Input Current
- 120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
- Listings
- IECC, UL and cUL listed, FCC, ICC
- Application
- Offices, Lobbies, Small Meeting Rooms
- Neutral Wire Connection
- Required
- Feature
- App configurable
- Sensor Type
- Occupancy / Vacancy
- Pattern
- 180°
- Product Type
- Smart Sensor with Dimming
- Testing and Code Compliance
- Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
- Frequency
- 50/60Hz
- Operating Temperature
- 0°C to 40°C
- Voltage
- 120 to 277V AC
- Sensor Technology
- Passive Infrared (PIR)
- Coverage (Sq.Ft.)
- 1100
- Grade
- Commercial
- Storage Temperature Range
- -40° to 185°F (-40° to 85°C)
- IP Rating
- IP10
- Switch Type
- Single-Pole
- Mounting
- Wall Switch
- Horsepower Rating
- 1/4 hp
- Operating Voltage
- 120 to 277V AC
