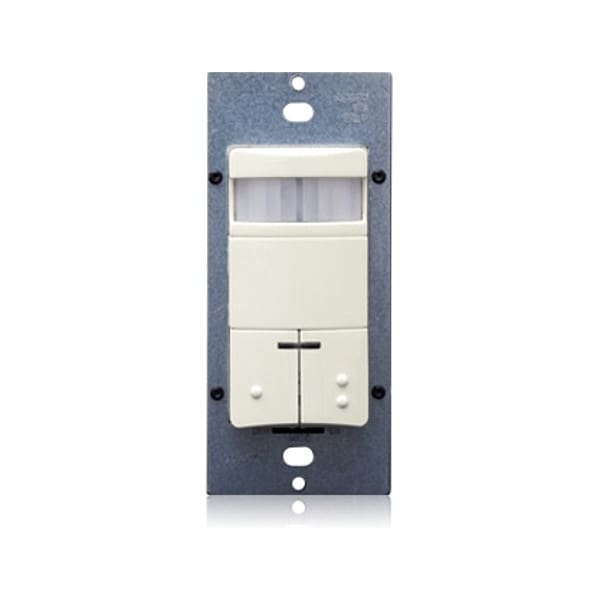

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,100 sq ft, Incandescent, LED ODS0D-IDT - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,100 sq ft, Incandescent, LED

  • Mfr # ODS0D-IDT

  • Zoro # G104393456

product price: $98.79
/ea
Free Shipping & Returns

Key Features

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 30 min
Standards
cUL/US Certified, FCC Approved, Title 24, Part 6
Communication Method
Hard Wired
Color
Almond
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ODS0D-IDT
Zoro #
G104393456
UPC #
078477277454
Country of Origin
China

Dimensions

Overall Width
1.75 in
Overall Height
4.06 in
Overall Depth
1.83 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)

Details

Sensing Technology
Passive Infrared (PIR)
Time Delay - Motion Sensor
30 sec to 30 min
Standards
cUL/US Certified, FCC Approved, Title 24, Part 6
Item
Occupancy Sensor
Communication Method
Hard Wired
Color
Almond
Time Delay
30s-30m
Coverage Angle - Motion Sensor
180 Degrees
Description/Special Features
Beep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens
Max. Capacity @ 277VAC
2700V (Primary Relay Fluorescent)
Includes
Photocell
Max. Capacity @ 120VAC
1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent)
Lighting Technology
Incandescent, LED
Includes Wall Plate
Wall Plate Not Included
Manufacturer Warranty
5 yr
Minimum Time Delay
30 sec
Number of Gangs
1
Load Rating @ 120V AC
1,200VA, Primary Relay Fluorescent, 800V, Secondary Relay Fluorescent, 800W, Incandescent
Installation Location
Wall Mount
Time Delay Adjustment Method
Adaptive
Series
Decora
Maximum Time Delay
30 min
Rated Frequency
50/60 Hz
Compatible with Series
Switching Only (universal)
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Occupancy, Photocell, Vacancy
Number of Buttons
2
Load Rating @ 277V AC
2,700V (Primary Relay Fluorescent)
Maximum Coverage Area
2,100 sq ft
Fan Rated
Yes
Maximum Operating Temperature
122 Degrees F
Neutral Required
No
Includes Motion Sensor
Yes
Nightlight
No
Includes Dimming Switch
Dimming Switch Not Included
Coverage Type
Small Motion
Coverage Angle
180 Degrees
Maximum Detection Distance
40 ft
Power Consumption
120V - 110mW, 277V - 270mW
Wiring
Primary Relay No. 16 AWG leads: Line-Black, Load-Blue, Ground-Green - Secondary Relay N0. 18 AWG isolated contact leads: (2) Red
Neutral Wire Connection
Not Required
Sensor Technology
Passive Infrared (PIR)
Operating Temperature
32° to 122°F (0° to 50°C)
Grade
Commercial
Relative Humidity
20% to 90% non-condensing
Pattern
180°
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Application
Classrooms, Multimedia Rooms, Daylight Harvesting, Conference Rooms, Day Care Centers, Offices, Lounges, Bi-Level or A/B Switching
Switch Type
Single-Pole, Dual Relay
Operating Voltage
120/230/277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Incandescent, LED, Operating Voltage 120/230/277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,200VA (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,100 sq ft, Neutral Required No, Color Light Almond, Nightlight No
