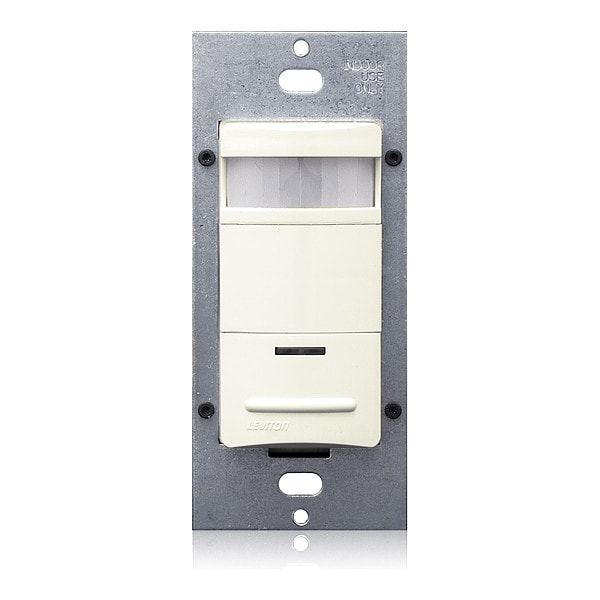

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,100 sq ft, Incandescent, LED

  • Mfr # ODS10-IDT

  • Zoro # G904393458


product price: $68.79
/ea

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Lighting Technology
Incandescent, LED
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ODS10-IDT
Zoro #
G904393458
UPC #
078477277461
Country of Origin
China

Dimensions

Overall Width
1.75 in
Overall Height
4.06 in
Overall Depth
1.83 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83"(47mm), Install Depth 1.35"(34.4mm), Install Height 2.60"(66.2mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)
Time Delay Adjustment Method - Motion Sensor
Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Item
Occupancy Sensor
Lighting Technology
Incandescent, LED
Time Delay
30s-30m
Max. Capacity @ 120VAC
1200V (Fluorescent), 800W (Incandescent)
Color
Almond
Coverage Angle - Motion Sensor
180 Degrees
Standards
ASHRAE 90.1, CSA Certified, FCC Approved, NOM, RoHS Compliant, Title 24, Part 6, UL Listed
Communication Method
Hard Wired
Max. Capacity @ 277VAC
2700VA (Fluorescent)
Description/Special Features
Convenient Pushbutton Provides Manual-On/Off Light Switching At Any Time, Exclusive Leviton H.I.S. Circuitry. Specifically Designed to Handle Today's High Inrush Electronic Ballast Loads and Offer Unmatched Durability and Service, False Detection Circuitry, Fits in Standard Wallbox and Replaces Single-Pole Wall Switch. Gangable With Other Units, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees of Arc by Using Integral Blinders Located on Either Side of the Lens. No Masking Tape Required, Light Sensor Enables the Load Hold-Off Feature Once Level Has Been Set, Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look. Elegant Decora Styling Complements Any Interior, Presentation Mode Feature for Slide or Film Presentations Allows Push Buttons to Turn Lights Off and Keep Them Off While the Room is Occupied, Relay Switches At the Zero Crossing Point of the Ac Power Curve to Ensure Maximum Contact Life and Compatibility With Electronic Ballasts, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, Time Delay Adjustment for Delayed-Off Time Set-Tings of 30 Seconds (for Walking Test), 10 Minutes, 20 Minutes, and 30 Minutes. Allows Customized Adjustments to Maximize Energy Savings, to Comply With T24, Red Led Indicator Light Flashes When Sensor Detects Motion to Verify Detection is Active, Uses Decora Wallplates and Coordinates With Leviton's Popular Line of Decora Wiring Devices, Vacancy Confirmation, Vandal Resistant PIR Lens
Includes
Photocell
Rated Frequency
50/60 Hz
Minimum Time Delay
30 sec
Neutral Required
No
Sensor Operation
Occupancy, Photocell, Vacancy
Manufacturer Warranty
5 yr
Nightlight
No
Compatible with Series
Switching Only (universal)
Number of Buttons
1
Includes Wall Plate
Wall Plate Not Included
Maximum Detection Distance
40 ft
Maximum Operating Temperature
122 Degrees F
Includes Motion Sensor
Yes
Coverage Angle
180 Degrees
Includes Dimming Switch
Dimming Switch Not Included
Minimum Operating Temperature
32 Degrees F
Load Rating @ 120V AC
1,200VA, Fluorescent, 800W, Incandescent
Maximum Time Delay
30 min
Load Rating @ 277V AC
2,700VA (Fluorescent)
Coverage Type
Small Motion
Installation Location
Wall Mount
Series
Decora
Maximum Coverage Area
2,100 sq ft
Horsepower Rating
1/4 hp
Fan Rated
Yes
Neutral Wire Connection
Not Required
Wiring
Line-Black, Load-Blue, Ground-Green, No Neutral required
Relative Humidity
20% to 90% non-condensing
Pattern
180°
Standby Power
120V - 100mW, 277V - 250mW
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Operating Temperature
0°C to 50°C
Application
Small offices, Conference rooms, Lounges, Classrooms
Sensor Technology
Passive Infrared (PIR)
Switch Type
Single-Pole
Grade
Commercial
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 1,200VA (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,100 sq ft, Neutral Required No, Color Light Almond, Nightlight No, Dimming Method No Dimming, Dimming Type No Dimming
