  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent

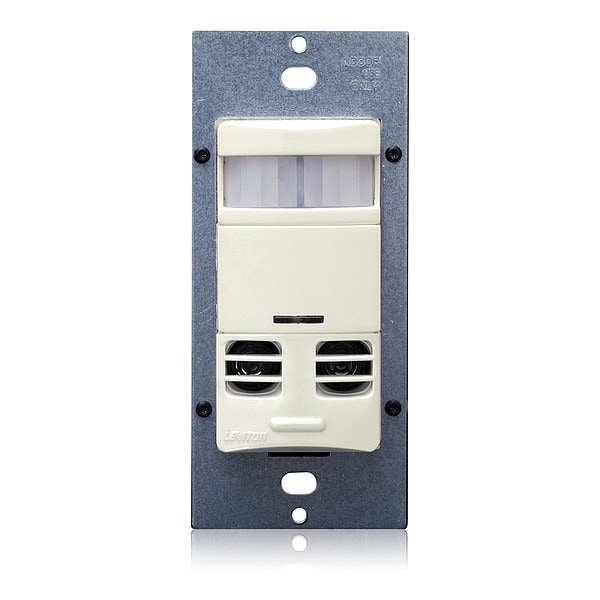

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent OSSMT-GDT - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent

  • Mfr # OSSMT-GDT

  • Zoro # G904393441

product price: $69.79
/ea

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Communication Method
Hard Wired
Coverage Angle - Motion Sensor
180 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMT-GDT
Zoro #
G904393441
UPC #
078477407004
Country of Origin
China

Dimensions

Overall Height
4.06 in
Overall Depth
1.85 in
Overall Width
1.75 in
Size
Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Item
Occupancy Sensor
Communication Method
Hard Wired
Coverage Angle - Motion Sensor
180 Degrees
Color
Almond
Max. Capacity @ 120VAC
1200V (Fluorescent), 800W (Incandescent, Tungsten)
Time Delay
30s - 30m
Max. Capacity @ 277VAC
2700VA (Fluorescent)
Standards
CSA Certified, ETL/cETL Listed, Title 24 Compliant, USMCA Compliant
Lighting Technology
Fluorescent, Incandescent
Compatible with Series
Switching Only (universal)
Sensor Operation
Occupancy, Photocell, Vacancy
Minimum Time Delay
30 sec
Maximum Operating Temperature
104 Degrees F
Series
Decora
Coverage Angle
180 Degrees
Maximum Time Delay
30 min
Time Delay Adjustment Method
Adaptive
Coverage Type
Small Motion
Load Rating @ 277V AC
2,700VA (Fluorescent)
Load Rating @ 120V AC
1,200VA, Fluorescent, 800W, Incandescent, Tungsten
Minimum Operating Temperature
32 Degrees F
Manufacturer Warranty
5 yr
Installation Location
Wall Mount
Maximum Coverage Area
2,400 sq ft
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Application
Retrofit, Private and Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching
Pattern
180°
Relative Humidity
20% to 90% non-condensing
Grade
Commercial
Switch Type
Single-Pole
Power Consumption
U/S and PIR: 120V 110mW, 277V 340mW - PIR only: 120V 70mW, 277V 310mW
USMCA Compliant
Yes
Neutral Wire Connection
Not Required
Wiring
Line-Black, Neutral-White, Load-Blue, Ground-Green
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Operating Temperature
0°C to 40°C
Horsepower Rating
1/4 hp
Includes Wall Plate
Wall Plate Not Included
Rated Frequency
50/60 Hz
Maximum Detection Distance
40 ft
Fan Rated
No
Includes Dimming Switch
Dimming Switch Not Included
Neutral Required
No
Number of Buttons
1
Nightlight
No
Includes Motion Sensor
Yes
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,200VA (Fluorescent), 800W (Incandescent, Tungsten), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required No, Color Light Almond, Nightlight No, Dimming Method No Dimming
