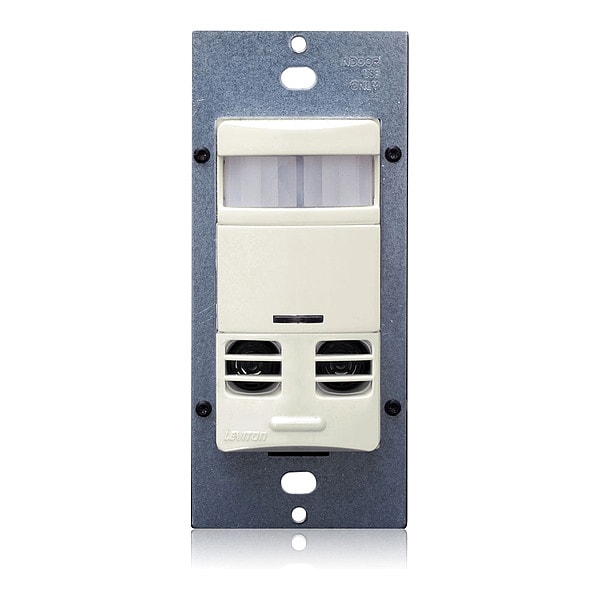

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent OSSMT-MAT - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Almond, 2,400 sq ft, Fluorescent, Incandescent

  • Mfr # OSSMT-MAT

  • Zoro # G704393436

product price: $113.99
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 120VAC
1200V (Fluorescent), 800W (Incandescent, Tungsten)
Coverage Angle - Motion Sensor
180 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMT-MAT
Zoro #
G704393436
UPC #
078477509258
Country of Origin
United States

Dimensions

Overall Height
4.06 in
Overall Depth
1.85 in
Overall Width
1.75 in
Size
Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 120VAC
1200V (Fluorescent), 800W (Incandescent, Tungsten)
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Fluorescent, Incandescent
Time Delay
30s-30m
Max. Capacity @ 277VAC
2700VA (Fluorescent)
Communication Method
Hard Wired
Includes
Neutral Wire
Standards
Title 24 Compliant, UL/cUL Listed, USMCA Compliant
Item
Occupancy Sensor
Color
Almond
Sensor Operation
Occupancy, Photocell, Vacancy
Minimum Operating Temperature
32 Degrees F
Load Rating @ 277V AC
2,700VA (Fluorescent)
Installation Location
Wall Mount
Coverage Angle
180 Degrees
Time Delay Adjustment Method
Adaptive
Maximum Operating Temperature
104 Degrees F
Maximum Time Delay
30 min
Coverage Type
Small Motion
Compatible with Series
Switching Only (universal)
Series
Decora
Minimum Time Delay
30 sec
Load Rating @ 120V AC
1,200VA, Fluorescent, 800W, Incandescent, Tungsten
Manufacturer Warranty
5 yr
Maximum Coverage Area
2,400 sq ft
Rated Frequency
50/60 Hz
Includes Wall Plate
Wall Plate Not Included
Fan Rated
Yes
Horsepower Rating
1/4 hp
Number of Buttons
1
Includes Motion Sensor
Yes
Includes Dimming Switch
Dimming Switch Not Included
Nightlight
No
Maximum Detection Distance
40 ft
Neutral Required
Yes
Relative Humidity
20% to 90% non-condensing
Power Consumption
U/S and PIR: 120V 390mW, 277V 480mW, 347V 500mW - PIR only: 120V 190mW, 277V 270mW, 347V 350mW
Pattern
180°
USMCA Compliant
Yes
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Neutral Wire Connection
Required
Switch Type
Single-Pole
Application
Retrofit, Private and executive offices, Conference rooms, Storage areas, Restrooms, Classrooms, Lounges, Training areas, Multi-location switching (similar to 3-way)
Wiring
Line - Black, Load - Blue, Ground - Green, Neutral - White
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Operating Temperature
0°C to 40°C
Grade
Commercial
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,200VA (Fluorescent), 800W (Incandescent, Tungsten), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required Yes, Color Light Almond, Nightlight No, Dimming Method No Dimming

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
