  11. Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Gray, 2,400 sq ft, Fluorescent, Incandescent, LED

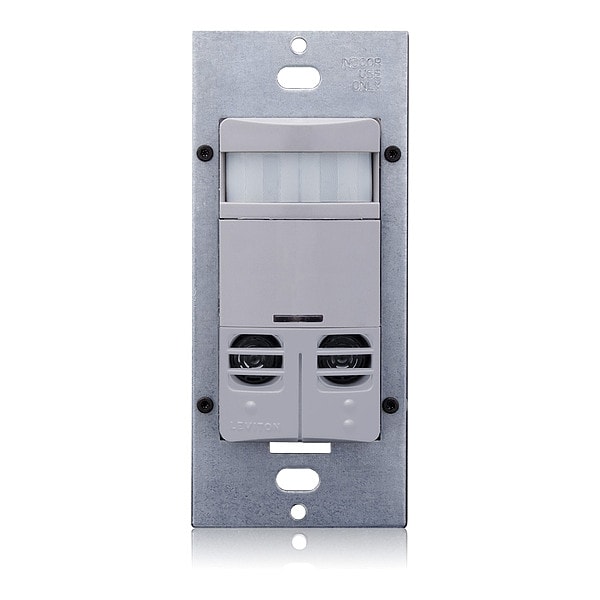

Leviton Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Gray, 2,400 sq ft, Fluorescent, Incandescent, LED OSSMD-MAG - main

Wall Mount Sensor, Occupancy, Photocell, Vacancy, Hard Wired, Gray, 2,400 sq ft, Fluorescent, Incandescent, LED

  • Mfr # OSSMD-MAG

  • Zoro # G704393474

product price: $138.99
/ea
Free Shipping & Returns

Key Features

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 277VAC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Max. Capacity @ 120VAC
10A (LED), 1200V (Fluorescent), 800VA (Fluorescent), 800W (Incandescent)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMD-MAG
Zoro #
G704393474
UPC #
078477509173
Country of Origin
United States

Dimensions

Overall Height
4.06 in
Overall Depth
1.83 in
Overall Width
1.75 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)

Details

Use With - Motion Sensing and Dimming
1/4 HP Motor
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Time Delay - Motion Sensor
30 sec to 30 min
Max. Capacity @ 277VAC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Max. Capacity @ 120VAC
10A (LED), 1200V (Fluorescent), 800VA (Fluorescent), 800W (Incandescent)
Color
Gray
Standards
ASHRAE 90.1, CSA Certified, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6, USMCA Compliant
Coverage Angle - Motion Sensor
180 Degrees
Item
Occupancy Sensor
Lighting Technology
Fluorescent, Incandescent, LED
Time Delay
30s-30m
Communication Method
Hard Wired
Time Delay Adjustment Method
Adaptive
Load Rating @ 277V AC
10A (LED), 1200VA (Fluorescent), 2700VA (Fluorescent)
Maximum Time Delay
30 min
Compatible with Series
Switching Only (universal)
Load Rating @ 120V AC
1,200VA, Fluorescent, 10A, LED, 800VA, Fluorescent, 800W, Incandescent
Coverage Angle
180 Degrees
Maximum Coverage Area
2,400 sq ft
Minimum Time Delay
30 sec
Manufacturer Warranty
5 yr
Coverage Type
Small Motion
Minimum Operating Temperature
32 Degrees F
Sensor Operation
Occupancy, Photocell, Vacancy
Series
Decora
Installation Location
Wall Mount
Maximum Operating Temperature
104 Degrees F
Fan Rated
Yes
Includes Motion Sensor
Yes
Includes Dimming Switch
Dimming Switch Not Included
Neutral Required
Yes
Includes Wall Plate
Wall Plate Not Included
Number of Buttons
2
Rated Frequency
50/60 Hz
Number of Gangs
1
Horsepower Rating
1/4 hp
Maximum Detection Distance
40 ft
Nightlight
No
Application
Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
Wiring
Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red
Pattern
180°
Operating Temperature
32° to 104°F (0° to 40°C)
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Relative Humidity
20% to 90% non-condensing
Neutral Wire Connection
Required
Power Consumption
120V 210mW, 277V 410mW
Grade
Commercial
USMCA Compliant
Yes
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Switch Type
Single-Pole, Dual Relay
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 2, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Fluorescent, Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Load Rating @ 120V AC 1,200VA (Fluorescent), 10A (LED), 800VA (Fluorescent), 800W (Incandescent), Communication Method Hard Wired, Maximum Coverage Area 2,400 sq ft, Neutral Required Yes, Color Gray, Nightlight No
