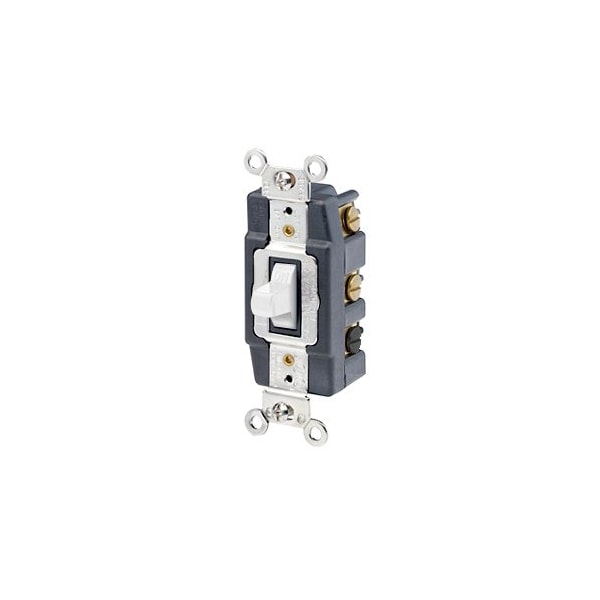

Wall Switch, 1 hp, Toggle, 20 A, White
Mfr # 1286-W
Zoro # G922587068
product price:Â
$
89.59
/ea
Key Features
Strap Material
Steel
Switch Material
Thermoplastic
Contact Material
Silver Alloy
Market
Industrial
Illuminated
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1286-W
- Zoro #
- G922587068
- UPC #
- 78477880623
- Country of Origin
- Mexico
- Strap Material
- Steel
- Switch Material
- Thermoplastic
- Contact Material
- Silver Alloy
- Market
- Industrial
- Illuminated
- No
- Item
- Wall Switch
- Color
- White
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Number of Switches
- 1
- Minimum Operating Temperature
- -40 Degrees C
- Horsepower Rating
- 1 hp
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Wire Connection Type
- Screw Terminals
- Voltage Rating
- 120/277V AC
- Grounding
- Grounded
- Current Rating
- 20 A
- Switch Function
- Maintained
- Switch Type
- Double Pole/Double Throw
- Housing Material
- Thermoplastic
- Maximum Operating Temperature
- 65 Degrees C
- Wiring Method
- Back/Side
Description
Wall Switch, Color White, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Double Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
