Shop LEVITON

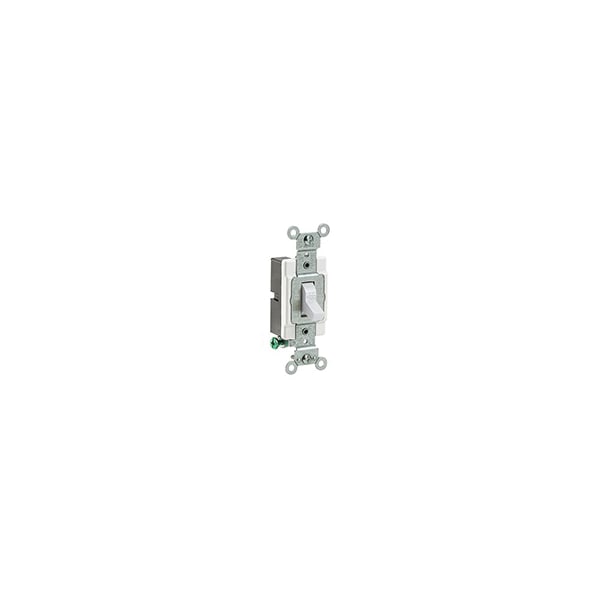

Wall Switch, 1-Pole, Side, 120/277V, 20A, Wht

  • Mfr # CS120-2W

  • Zoro # G4076713

product price:
$
4.49
/ea
Sold in multiples of 2 for $8.98

Key Features

Switch Function
Maintained
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
Color
White
Height
10.5000 in
Voltage
120/277 VAC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS120-2W
Zoro #
G4076713
UPC #
78477815748
Country of Origin
United States

Dimensions

Height
10.5000 in
Length
17.2500 in
Dimensions
46 in H x 1.31 in W x 0.92 in D

Details

Switch Function
Maintained
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
Item
Wall Switch
Color
White
Voltage
120/277 VAC
Body Material
Thermoplastic
Connection
Side Wired
Mounting
Box
Switch Type
1-Pole
Switch Style
Toggle
Voltage AC
120 to 277
Locking
No
Amps AC
20
Antimicrobial
No
Rated HP
1
Application Environment
Commercial
Wiring Method
Side
Description/Special Features
Quiet Switch
Flammability
Rated V-2 per UL94
Amperage
20 A
Device Type
Toggle Switch
Termination
Side Wire
HP Rating
1HP-120V 2HP-240V-277V
Operating Temperature
-40°C to 65°C
NEMA
WD-1 & WD-6
Base Material
PBT
Actuator Material
Thermoplastic
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-12 AWG
UL Fed Spec WS896E
File #E7458
Contacts
Silver-Cadmium .031 Thick
Dielectric Voltage
Withstands 1500V for 1 minute
UL Standard
UL 20
ANSI
C-73
Max. Amperage
16 Amp
Terminal Screws
Steel 8-32
Cover Material
Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA C22.2 No. 111
File #152105
Grade
Commercial Specification Grade
Temperature Rise
Maximum 30 degrees C rise
Toggle
Polycarbonate
Function
Single-Pole
Strap Material
Steel
Terminal Type
Side Wired
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS-896E (File E7458);UL Standard (UL 20)
Contact Configuration
SP
Power Rating
800 W, 1000 VA
Environmental Conditions
Flammability (Rated V-2 per UL94)
Action
SP
Enclosure
NEMA WD-1/WD-6
Number of Poles
1

Description

20 Amp, 120/277 Volt, Toggle Single-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - White
