  13. Wall Switch, 3-Way, 120/277V, 20A, Wht, Toggl

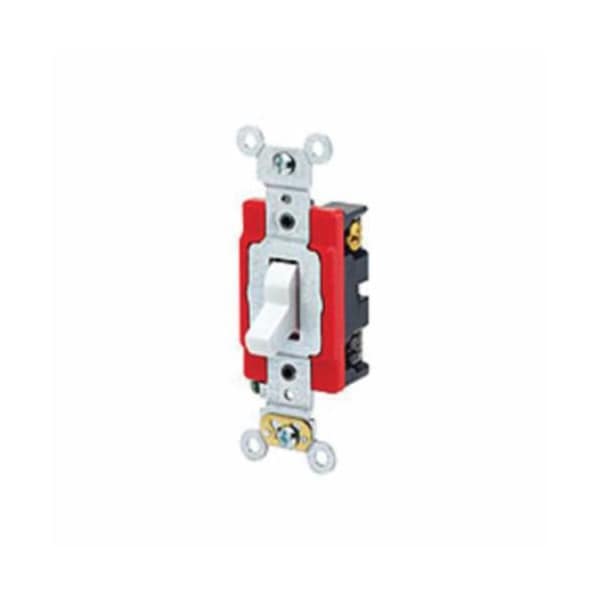

Leviton Wall Switch, 3-Way, 120/277V, 20A, Wht, Toggl 1223-2W - main

Wall Switch, 3-Way, 120/277V, 20A, Wht, Toggl

  • Mfr # 1223-2W

  • Zoro # G4048896

product price: $8.49
/ea

Key Features

Switch Function
Maintained
Color
White
Mounting
Box
Height
7.2500 in
Material
Thermoplastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1223-2W
Zoro #
G4048896
UPC #
78477223482
Country of Origin
United States

Dimensions

Height
7.2500 in
Length
9.2500 in
Dimensions
46 in H x 1.31 in W x 13 in D

Details

Switch Function
Maintained
Color
White
Mounting
Box
Material
Thermoplastic
Switch Type
3-Way
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Fed Spec WS896E: File #E7458, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057, RoHS: Compliant
Connection
Back Wired;Side Wired
Item
Wall Switch
Voltage AC
120 to 277
Description/Special Features
Quiet Switch
Amps AC
20
Wiring Method
Back and Side
Switch Style
Toggle
Rated HP
1
Antimicrobial
No
Locking
No
Application Environment
Industrial
Number of Poles
1
Application
Commercial
Operating Cycles
50000
Operating Temperature
-40 to +65 °C
Standard
NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant
Power Rating
800 W, 1000 VA
Enclosure
NEMA WD-1/WD-6
Environmental Conditions
Flammability (Rated V-2 per UL94)
Amperage Rating
20 A
Voltage Rating
120/277 VAC
Terminal Type
Back/Side Wired
Type
Toggle Switch

Description

20-Amp, 120/277-Volt, Toggle 3-Way AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back and Side Wired, White
