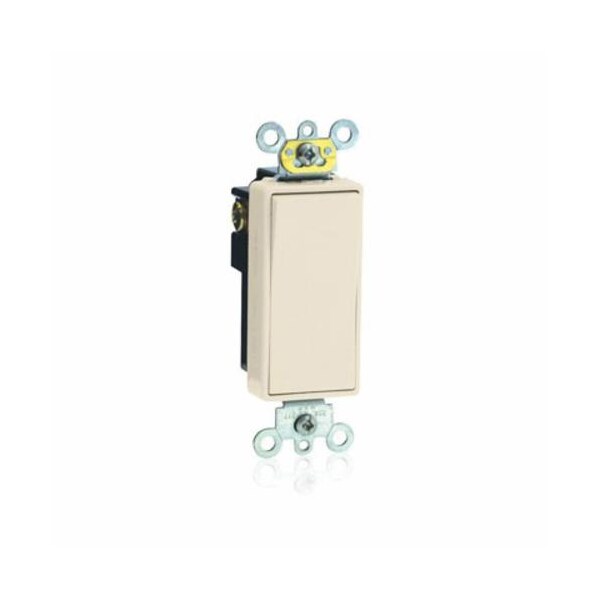

Leviton Wall Swtch, 1-Pol, 120/277V, 20A, Ivry, Rockr 5621-2I - main

Wall Swtch, 1-Pol, 120/277V, 20A, Ivry, Rockr

  • Mfr # 5621-2I

  • Zoro # G4049815

product price: $9.59
/ea

Key Features

Switch Type
1-Pole
Switch Style
Rocker
Amps AC
20
Color
Ivory
Voltage AC
120 to 277
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5621-2I
Zoro #
G4049815
UPC #
78477052655
Country of Origin
Mexico

Details

Item
Wall Switch
Switch Type
1-Pole
Switch Style
Rocker
Amps AC
20
Color
Ivory
Voltage AC
120 to 277
Locking
No
Switch Function
Maintained
Wiring Method
Back and Side
Application Environment
Commercial
Standards
NEMA: WD-1 and WD-6, ANSI: C-73, UL Standard: UL20, CSA C22.2 No. 111: File #152105, NOM: 057
Voltage
120/277 VAC
Rated HP
1
Grade
Commercial Specification Grade
Antimicrobial
No
Description/Special Features
Quiet Switch
Body Material
Thermoplastic Polyester
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Grounding
Self-Grounding
Termination
Back or Side Wire
ANSI
C-73
Endurance
50,000 cycles minimum
Max. Amperage
16 Amp
Strap Material
Steel
Device Type
Rocker Switch
Terminal Accom.
14-#10 AWG back wired; #14-#12 AWG side wired
UL Standard
UL 20
Temperature Rise
Maximum 30 degrees C rise
Actuator Material
Thermoplastic
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40°C to 65°C
Dielectric Voltage
Withstands 1500V for 1 minute
Function
Single-Pole
Flammability
Rated V-2 per UL 94
NEMA
WD-1 & WD-6
Overload UL20 Test
100 cycles of OL at 4.8 times rated current
Amperage
20 A
HP Rating
1HP-120V 2HP-240V

Description

20-Amp 120/277-Volt Decora Plus Rocker Single-Pole AC Quiet Switch, Ivory
