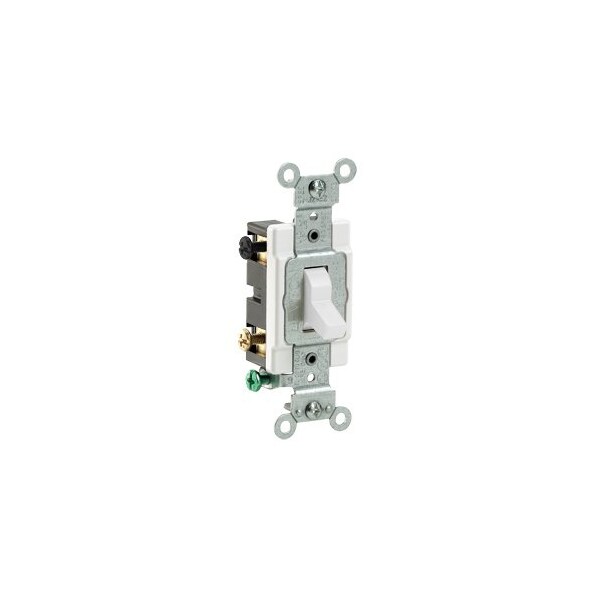

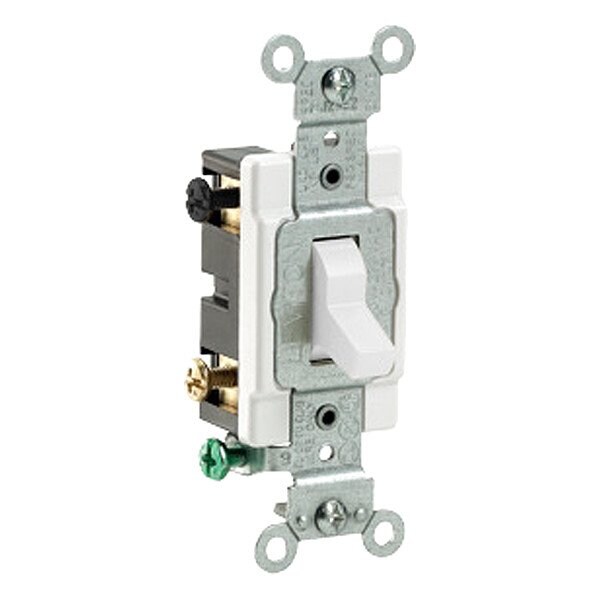

WallSwitch, 1/2hp, Toggle, 15A, White, PK10
Mfr # CS415-2W
Zoro # G322586920
product price:Â
$
218.99
/pk 10, $21.90/ea
Free Shipping & Returns
Key Features
Contact Material
Silver Alloy
Maximum Wire Size
12 AWG
Market
Commercial
Minimum Wire Size
14 AWG
Switch Type
4-Way
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CS415-2W
- Zoro #
- G322586920
- UPC #
- 78477815687
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 12 AWG
- Minimum Wire Size
- 14 AWG
- Switch Height
- 2.2 in
- Overall Height
- 4.1 in
- Overall Width
- 1.3 in
- Switch Depth
- 0.9 in
Details
- Contact Material
- Silver Alloy
- Market
- Commercial
- Switch Type
- 4-Way
- Grounding
- Grounded
- Housing Material
- Thermoplastic
- Minimum Operating Temperature
- -40 Degrees C
- Color
- White
- Horsepower Rating
- 1/2 hp
- Switch Material
- Thermoplastic
- Maximum Operating Temperature
- 65 Degrees C
- Voltage Rating
- 120/277V AC
- Wiring Method
- Side
- Wire Connection Type
- Screw Terminals
- Item
- Wall Switch
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Current Rating
- 15 A
- Strap Material
- Steel
Description
Wall Switch, Color White, Current Rating 15 A, Switch Type 4-Way, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1/2 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy, Features 10-Year Limited, Withstands 1,500V for 1 minute
