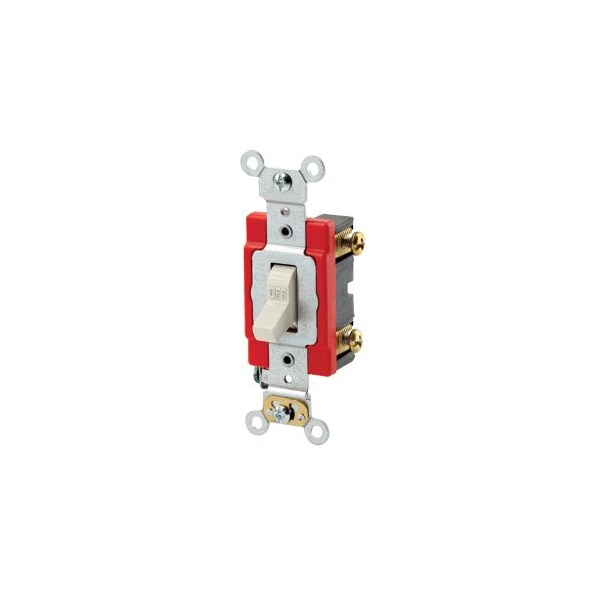

WallSwitch, 1hp, Toggle, 20A, LightAlmond

Mfr # 1221-2T
Zoro # G622586897

Key Features

Overall Height

4.1 in

Wiring Method

Back/Side

Maximum Wire Size

10 AWG

Illuminated

Grounding

Grounded

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 1221-2T
Zoro #: G622586897
UPC #: 78477270721
Country of Origin: United States

Dimensions

Overall Height: 4.1 in
Maximum Wire Size: 10 AWG
Minimum Wire Size: 14 AWG
Overall Width: 1.3 in

Details

Wiring Method: Back/Side
Illuminated: No
Grounding: Grounded
Switch Type: Single Pole
Market: Industrial
Color: Light Almond
Maximum Operating Temperature: 65 Degrees C
Minimum Operating Temperature: -40 Degrees C
Features: 10-Year Limited, Withstands 1,500V for 1 minute
Switch Material: Thermoplastic
Contact Material: Silver Alloy
Current Rating: 20 A
Switch Function: Maintained
Wire Connection Type: Screw Terminals
Standards: ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Housing Material: Thermoplastic
Voltage Rating: 120/277V AC
Strap Material: Steel
Item: Wall Switch
Horsepower Rating: 1 hp
Number of Switches: 1

Description

Wall Switch, Color Light Almond, Current Rating 20 A, Illuminated No, Pilot Light No, Switch Function Maintained, Switch Type Single Pole, Voltage Rating 120/277V AC, Wiring Method Back/Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy
