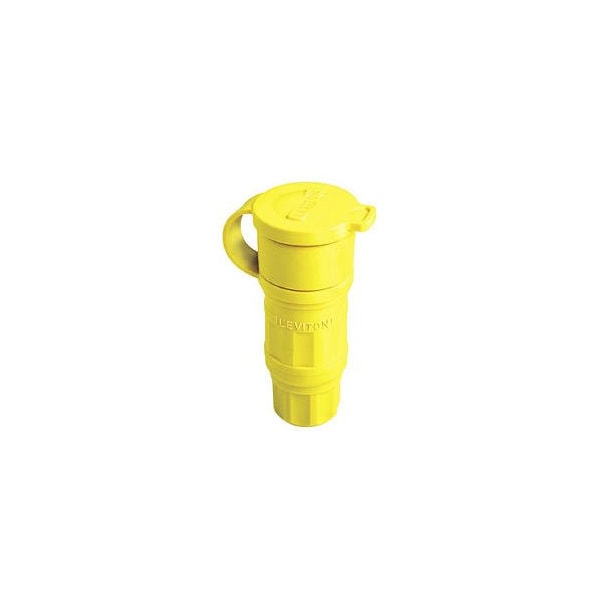

Watertight Locking Connector, L23-30R, 30 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals

  • Mfr # 29W83

  • Zoro # G415864706

product price:
$
180.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
29W83
Zoro #
G415864706
UPC #
078477968840
Country of Origin
Mexico
Item
Watertight Locking Connector
NEMA Receptacle Configuration
L23-30R
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
Press-On Cap
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498
Resistance Properties
Acid, Alkalies Resistant, Water, Watertight
IP Rating
IP69K
UL 94 Flammability Rating
V-2
Housing Material
EPTR Rubber
Midget Locking
No
For Environment
Wet
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1 hp
Power and Ground Indicating Light
No
Series
18
NEMA Enclosure Rating
4, 4X, 6, 6P
Grade
Federal Specification

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Yellow, Housing Material EPTR Rubber, IP Rating IP66, IP67, IP69K, NEMA Receptacle Configuration L23-30R, Number of Poles 4, Number of Wires 5, Phase Three, Resistance Properties Chemical Resistant, Waterproof, Shrouded Yes, Voltage Rating 347/600V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type Flip-Up Cap, Contact Material Nickel-Plated Brass, Face Diameter 2.281 in
