Shop LEVITON

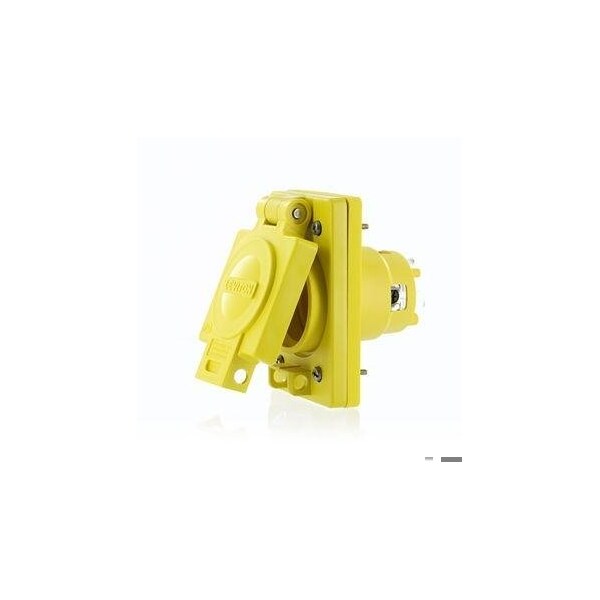

Watertight Locking Inlet, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals

  • Mfr # 68W81

  • Zoro # G315864745

product price:  $205.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
68W81
Zoro #
G315864745
UPC #
078477519424
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
Mount Hole Center-to-Center Height
3.25 in
Mount Hole Center-to-Center Width
0.8 in
Overall Depth
3.64 in
Flange Height
4.12 in
Face Plate Height
2.17 in
Face Diameter
2.22 in
Flange Width
3.13 in
Minimum Wire Size
12 AWG

Details

Item
Watertight Locking Inlet
NEMA Receptacle Configuration
L21-30R
Current Rating
30 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
Flange Material
Nylon
IP Rating
IP66
Wiring Style
Standard
NEMA Enclosure Rating
12, 4, 4X
Shrouded
Yes
Market
Industrial
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Blade Material
Nickel-Plated Brass
NEMA Plug Configuration
L21-30P
For Environment
Wet
Includes Mounting Hardware
Yes
Housing Material
Nylon
Connection Orientation
Straight
Number of Blades
4
Maximum Operating Temperature
140 Degrees F
Flange Shape
Rectangular
Features
Beveled Housing Prevents Snagging
Includes
Cover
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Number of Gangs
1
Horsepower Rating
3 hp
Series
Insulgrip
Number of Outlets
1
Polarized
Yes

Description

Locking Inlet, Cover Type Flip-Up Cover, Current Rating 30 A, Flange Material Nylon, Flange Shape Rectangular, Housing Color Yellow, IP Rating IP66, Mount Type Flush, NEMA Enclosure Rating 3R, 4, 4X, 6, 6P, NEMA Plug Configuration L21-30P, Number of Blades 4, Number of Poles 4, Phase Three, Resistance Properties Chemical Resistant, Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant, Watertight, Weather Resistant, Voltage Rating 120/208V AC, Wiring Style Standard
