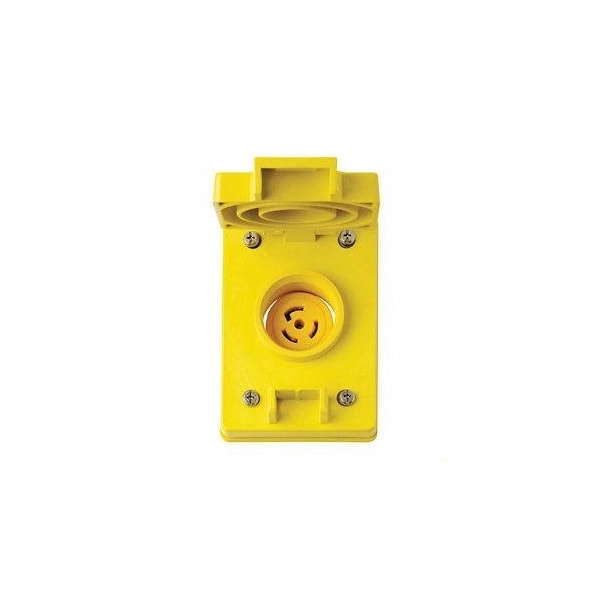

Watertight Locking Receptacle, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Yellow

  • Mfr # 67W75

  • Zoro # G715864741

product price:  $130.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
67W75
Zoro #
G715864741
UPC #
078477075098
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Mount Hole Center-to-Center Height
3.75 in

Details

Item
Watertight Locking Receptacle
NEMA Receptacle Configuration
L15-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
Flange Type
Flanged
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL Fed Spec WC-596, UL498
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
Grade
Federal Specification
Wiring Style
Standard
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
For Environment
Wet
Horsepower Rating
1 hp
IP Rating
IP67
Number of Outlets
1
Features
Resistant to Water, Acids, Alkalis, and Many Automotive and Industrial Lubricants and Solvents
Market
Industrial
Connection Orientation
Straight
Housing Material
Nylon
Shrouded
No
NEMA Enclosure Rating
4X
AFCI
No
Includes Mounting Hardware
Yes
Midget Locking
No
Hub Type
Dead End
Number of Gangs
1
Series
Insulgrip
UL 94 Flammability Rating
V-0

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Yellow, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating 4X, NEMA Receptacle Configuration L15-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, AFCI No, Contact Material Nickel-Plated Brass
