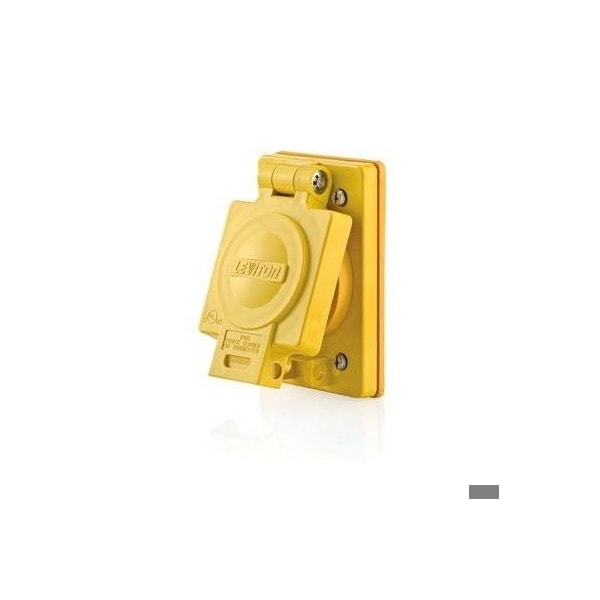

Leviton Watertight Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount 67W09 - main
Shop LEVITON

Watertight Locking Receptacle, Non-NEMA, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount

  • Mfr # 67W09

  • Zoro # G615864780

product price:  $139.99
/ea
Free Shipping & Returns

Key Features

NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
67W09
Zoro #
G615864780
UPC #
078477073988
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
18 AWG
Face Plate Width
3.13 in
Mount Hole Center-to-Center Height
3.75 in
Face Plate Height
1.078 in
Face Diameter
1.562 in

Details

Item
Watertight Locking Receptacle
NEMA Receptacle Configuration
Non-NEMA
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Non-Grounded
Housing Color
Yellow
Mount Type
Flush
Cover Type
Locking Flip-Up Cover
Flange Type
Flanged
Standards
Non-UL
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant, Watertight
Features
Resistant to Water, Acids, Alkalis, and Many Automotive and Industrial Lubricants and Solvents
Market
Industrial
For Environment
Wet
Minimum Operating Temperature
-40 Degrees F
IP Rating
IP66, IP67
Housing Material
Nylon
Includes Mounting Hardware
Yes
Wiring Style
Standard
Contact Material
Nickel Plated Phosphor Bronze
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Shrouded
No
AFCI
No
Midget Locking
No
Number of Outlets
1
Hub Type
Dead End
NEMA Enclosure Rating
4X
UL 94 Flammability Rating
V-2
Series
Insulgrip
Horsepower Rating
1 hp
Number of Gangs
1

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Yellow, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating 4X, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, AFCI No, Contact Material Nickel Plated Phosphor Bronze
