  11. Watertight Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single

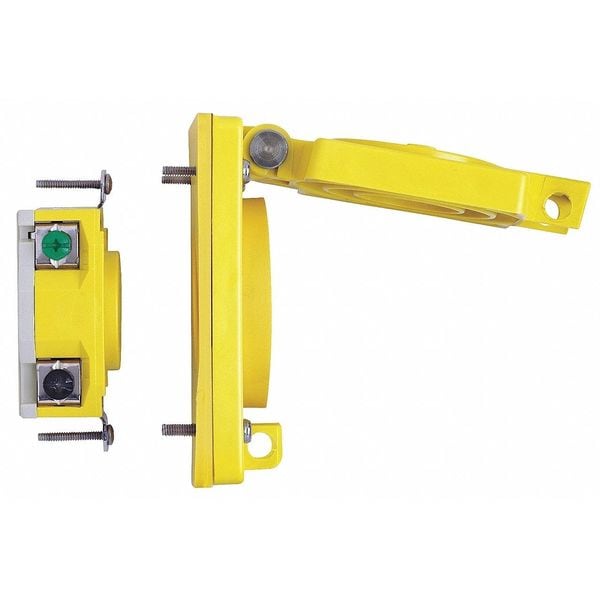

Leviton Watertight Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single 60W33 - main

Watertight Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single

  • Mfr # 60W33

  • Zoro # G504393216

product price: $108.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
60W33
Zoro #
G504393216
UPC #
07847706624
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Cord Size
18 to 10 AWG

Details

Item
Watertight Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
IP Rating
IP67
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, UL 498, UL 498 File E13399, UL Federal Specification WC-596 File E13399
Resistance Properties
Chemical Resistant, Corrosion Resistant, Heat Resistant, Impact Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Application Environment
Industrial
Wiring Method - Plugs and Receptacles
Back
Material
Thermoplastic Nylon (Body and Face)
Sub-Category
Single Receptacles
Outlet Type - Plugs and Receptacles
Single
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Cover Type
Locking Flip-Up Cover
Number of Outlets
1
Number of Gangs
1
Polarized
Yes
Shrouded
No
GFCI
No
Grade
Federal Specification
Horsepower Rating
1 hp
Hub Type
Dead End
Housing Material
Thermoplastic Nylon
Market
Industrial
Contact Material
Brass
Flange Shape
Rectangular
Surge Protection
No
NEMA Enclosure Rating
4, 4X, 6, 6P
AFCI
No
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
140 Degrees F
Body Material
Thermoplastic Nylon
Dielectric Strength
2000V
Screw Material
300 Stainless Steel
Temp. Rise
30°C
Flammability
UL 94 V2
Bushing Material
Santoprene TPV
Operating Temp.
-40 to 60°C

Description

Watertight Receptacle, Connection Orientation Straight, Cover Type Locking Flip-Up Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material Thermoplastic Nylon, Mount Type Recessed, NEMA Enclosure Rating 4, 4X, 6, 6P, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single
