Shop LIBERTY PUMPS

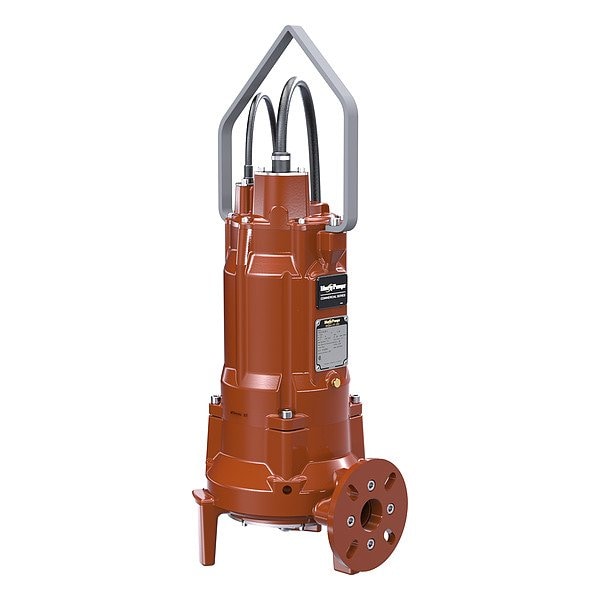

Grinder Pump, 14 in L, 12 1/2 in W

  • Mfr # LSGH303M-5

  • Zoro # G421725169

product price:  $9,332.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Cord Termination
Plug
Rated Voltage
230V AC
Series
LSG300
Shaft Seal Type
Double Mechanical
Switch Actuation
No Switch Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSGH303M-5
Zoro #
G421725169
UPC #
671812167290
Country of Origin
United States

Dimensions

Sump Pit Diameter - Minimum
30 in
Overall Width
12 1/2 in
Cord Length
50 ft
Overall Height
36 1/2 in
Overall Length
14 in
Manufacturers Warranty Length
18 mo
Discharge Diameter
2 in
Wire Rope Length
14 in

Details

Cord Termination
Plug
Rated Voltage
230V AC
Series
LSG300
Shaft Seal Type
Double Mechanical
Switch Actuation
No Switch Included
Horsepower
3 hp
Phase
Three
Flow Rate @ 10 ft of Head
115 gpm
Hazardous Location Class
Not Rated
Duty Cycle
Continuous
Power Source - TS Only
Corded Electric
Frequency
60 Hz
Feet of Head - Maximum
88 ft
Installation
Submersible
Liquid Temperature - Maximum
104 Degrees F
Operation
Automatic
Discharge Standard
NPT
Standards
ANSI/UL 778, CAN/CSA C22.2 NO.108-14, CSA, UL
Shaft Seal Material
Carbon/Ceramic/Viton Elastomers (Upper); Silicon Carbide/Graphite Impregnated Silicon Carbide/Viton Elastomers (Lower)
For Media Type
Grey Water, Sewage Water
Discharge Gender
Female
Motor Design
Capacitor-Start/Run
Volute Material
Cast Iron
Requires Control Panel
Control Panel Required
Item
Grinder Pump
Application
Waste Removal
Thermal Protection
Auto
Motor Housing Material
Cast Iron
Switch Electrical Connection
Manual
Discharge Orientation
Horizontal
Current
13 A
Impeller Material
Stainless Steel
Rotation Speed - Maximum
3,450 RPM
Power Source
Corded Electric

Description

Grinder Pump, Rated Voltage 230V AC, Impeller Material Stainless Steel, Switch Actuation No Switch Included, Switch Electrical Connection Manual, Overall Height 36 1/2 in, Cord Length 50 ft, Overall Width 12 1/2 in, Overall Length 14 in, Duty Cycle Continuous, Thermal Protection Auto, Manufacturers Warranty Length 18 mo

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
