  9. Grinder Pump, 208-230V, 15 Amps Ph 1

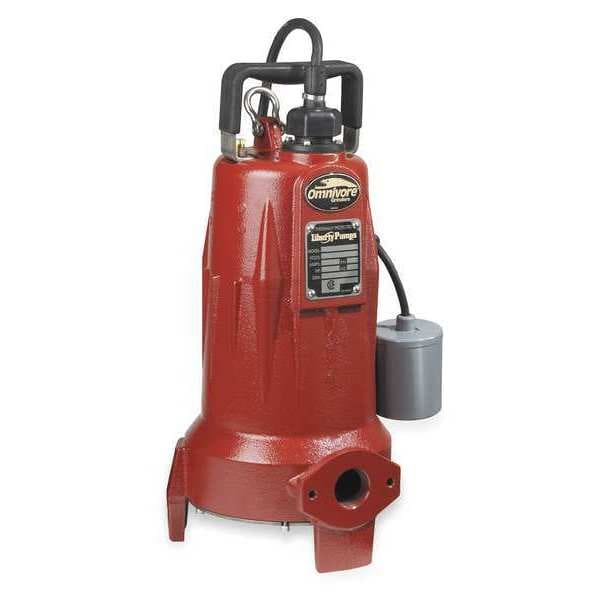

Liberty Pumps Grinder Pump, 208-230V, 15 Amps Ph 1 LSGX202A - main

Grinder Pump, 208-230V, 15 Amps Ph 1

  • Mfr # LSGX202A

  • Zoro # G2080617

product price: $2,763.75
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSGX202A
Zoro #
G2080617
UPC #
671812114881
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Manufacturers Warranty Length
3 yr
Cord Length
25 ft
Height
19-1/2"
Length
12-1/2" FNPT
Cord Length - Pumps
25 ft.
Max. Diameter Solids
2 in
Discharge Dia.
1 1/4 in
Overall Height
19 1/2 in
Overall Length
12 1/2 in
Solids Diameter - Maximum
2 in
Discharge Diameter
1 1/4 in
Sump Pit Diameter - Minimum
24 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
39 gpm
Max. Head
185 ft
Impeller Material
Stainless Steel
GPM of Water @ 10 Ft. of Head
39
Shaft Seal
SiC/DVL
Handle
Yes
GPM of Water @ 20 Ft. of Head
39
Item
Grinder Pump
GPM of Water @ 25 Ft. of Head
39
Off Point
8 in
GPM of Water @ 5 Ft. of Head
39
GPM of Water @ 55 Ft. of Head
38
GPM of Water @ 30 Ft. of Head
39
Pump RPM
3450
Impeller Material - Pumps
Stainless Steel
Thermal Protection
Yes
Switch Type
Tether
GPM of Water @ 90 Ft. of Head
29
GPM of Water @ 140 Ft. of Head
14
On Point
15 in
GPM of Water @ 150 Ft. of Head
11
GPM of Water @ 15 Ft. of Head
39
Agency Compliance
C-US, CSA
Voltage - Pumps
208 to 240VAC
GPM of Water @ 50 Ft. of Head
39
Discharge NPT
1-1/4" F
GPM of Water @ 120 Ft. of Head
20
Max. Liquid Temp.
140 Degrees F
Motor RPM
3450
GPM of Water @ 70 Ft. of Head
36
Input Phase AC
1
Hz
60
Housing Material
Cast iron
Duty
Intermittent
Max. Head - Pumps
185 ft.
Shaft Seal Material - Pumps
Silicon Carbide, Viton
Pump Body Material
Cast Iron
Voltage
208-230
Amps
15 A
GPM of Water @ 80 Ft. of Head
33
Item - Grinder Pumps
Grinder Pump
GPM of Water @ 130 Ft. of Head
16
GPM of Water @ 110 Ft. of Head
23
GPM of Water @ 45 Ft. of Head
39
Bearing Type
Upper and Lower Ball
GPM of Water @ 180 Ft. of Head
2
GPM of Water @ 60 Ft. of Head
39
GPM of Water @ 100 Ft. of Head
26
GPM of Water @ 35 Ft. of Head
39
GPM of Water @ 170 Ft. of Head
4
GPM of Water @ 40 Ft. of Head
39
Motor Type
CSCR
GPM of Water @ 160 Ft. of Head
7
Phase
Single
Switch Type - Pumps
Tether
Switch Electrical Connection
Piggyback
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
39 gpm
Discharge
1 1/4 in FNPT
Duty Cycle
Intermittent
Flow Rate @ 20 Ft. of Head
39 gpm
Flow Rate @ 60 Ft. of Head
39 gpm
Discharge Gender
Female
Rated Voltage
208/230V AC
Flow Rate @ 40 Ft. of Head
39 gpm
RPM
3,450 RPM
Standards
CSA, CUS
Power Source
Corded Electric
Volute Material
Cast Iron
Rotation Speed - Maximum
3,450 RPM
Horsepower
2 hp
Current
15 A
Cord Termination
Plug
Discharge Orientation
Horizontal
Hazardous Location Class
Not Rated
Shaft Seal Material
Silicon Carbide/Viton
Flow Rate @ 10 ft of Head
39 gpm
Shaft Seal Type
Single Mechanical
Series
LSGX
Feet of Head - Maximum
185 ft
Frequency
60 Hz
Liquid Temperature - Maximum
140 Degrees F
Motor Housing Material
Cast Iron
Requires Control Panel
No Control Panel Required
For Media Type
Sewage Water

Description

Grinder Pump, HP 2 hp, Rated Voltage 208/230V AC, Hz 60, Phase - Pumps 1, Amps 15 A, Motor Type CSCR, Body Material Cast Iron, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Silicon Carbide, Viton, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, Off Point 8 in, On Point 15 in, Flow Rate @ 10 Ft. of Head 39 gpm, Flow Rate @ 15 Ft. of Head 39 gpm, Flow Rate @ 20 Ft. of Head 39 gpm, Flow Rate @ 40 Ft. of Head 39 gpm, Flow Rate @ 60 Ft. of Head 39 gpm
