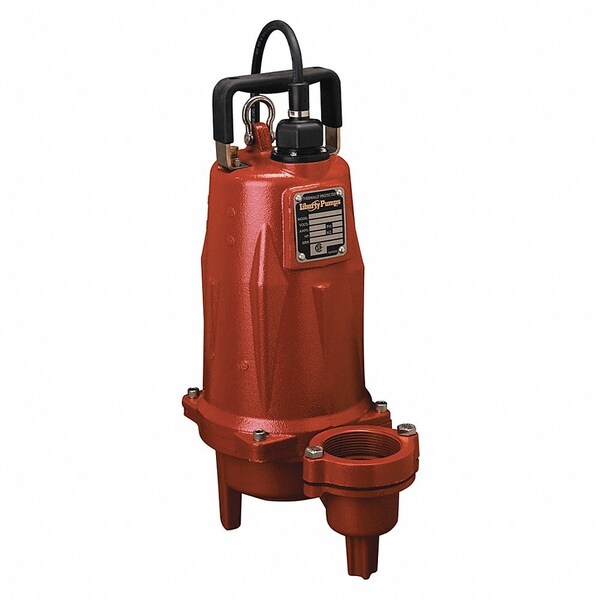

LEH200 Series 2 HP 230V 60Hz High Head Submresible Sewage Pump

  • Mfr # LEH202M2-2

  • Zoro # G010724436


product price:  $1,969.99
/ea
Item requires special delivery charges. A $165.00 per item surcharge will be applied.

Key Features

HP
2 HP
Nominal Voltage
230 V
Body Material
Cast Iron
Max. Head
79 ft
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LEH202M2-2
Zoro #
G010724436
UPC #
671812131888
Country of Origin
United States

Dimensions

Length
14.25 in
Height
21.125 in
Cord Length
25 ft
Width
12.875 in
Inside Diameter
8.125 in
Fits Pipe Size
2 in

Details

HP
2 HP
Nominal Voltage
230 V
Body Material
Cast Iron
Max. Head
79 ft
Hz
60 Hz
Pump RPM
3,450 RPM
Duty
Continuous
Includes
Cord
Thermal Protection
Yes
Max. Temp.
104°F
Color
Red
Amps
18 Amps
Flow Rate at 60 Ft. of Head
80 gpm
Flow Rate at 40 Ft. of Head
175 gpm
Finish
Epoxy
For Use With
LEH-Series Sewage Pumps
Impeller
Two Vane
Installation Type
Free Standing
Application
Commercial, Residential
Discharge
2 in Flanged
Weight
93 lbs

Description

These general purpose single-phase 200 to 240V sewage ejector pumps use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most 240V U.S. wall outlets.
