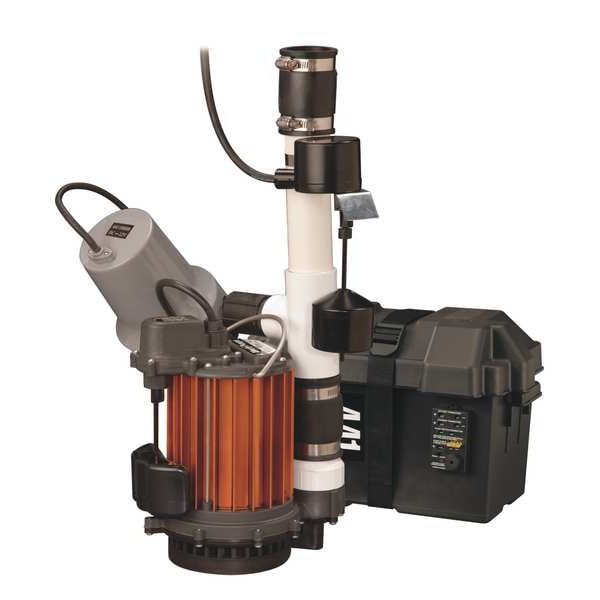

Liberty Pumps Sump/Battery Back-Up System, 1/3 HP PC237-441 - main

Sump/Battery Back-Up System, 1/3 HP

  • Mfr # PC237-441

  • Zoro # G3699665

product price: $664.50
/ea
Free Shipping & Returns

Key Features

HP
1/3 (Primary)
Body Material
Aluminum (Primary); ABS (Secondary)
Switch Actuation
Vertical Float
Flow Rate @ 10 Ft. of Head
30.0 gpm (Primary); 16.0 gpm (Secondary)
Max. Head
21.0 ft (Primary); 24.0 ft (Secondary)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PC237-441
Zoro #
G3699665
UPC #
671812118346
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
15 in
Cord Length
10 ft (Primary); 8 ft (Secondary)
Max. Diameter Solids
3/8 in
Length
15-1/2"
Width
10"
Max. Dia. Solids
3/8"
Cord Length - Pumps
10 ft. (Primary), 8 ft. (Secondary)
Max. Dia. Solids (In.) - Back-Up
1/4
Height
21-1/2"
Discharge Dia.
1 1/2 in
Primary Pump Width at Widest Point
10 in
Overall Height
21 1/2 in
Width at Widest Point
10 in
Secondary Pump Maximum Solids Diameter
1/4 in
Primary Pump Maximum Solids Diameter
3/8 in
Primary Pump Overall Height
21 1/2 in
Secondary Pump Solids Diameter - Maximum
1/4 in
Discharge Diameter
1 1/2 in
Sump Pit Diameter - Minimum
15 in
Primary Pump Solids Diameter - Maximum
3/8 in

Details

HP
1/3 (Primary)
Body Material
Aluminum (Primary); ABS (Secondary)
Switch Actuation
Vertical Float
Flow Rate @ 10 Ft. of Head
30.0 gpm (Primary); 16.0 gpm (Secondary)
Max. Head
21.0 ft (Primary); 24.0 ft (Secondary)
Item - Sump Pumps
Sump/Battery Back-Up Combination System
Agency Compliance
CSAc,us
On Point
7 in
Amps - Pumps
5.20
Voltage - Pumps
115VAC
Voltage
115
Amps
5.2 A
Switch Type
Vertical Float
GPM of Water @ 5 Ft. of Head
38 (Primary), 25.5 (Secondary)
For Use With
Sump Pits Above 15" Diameter and 18" Deep
Housing Material
Aluminum (Primary); ABS Plastic (Secondary)
Max. Flow (GPH)
2700
Switch Type - Pumps
Vertical
Pump Body Material
Aluminum (Primary), ABS Plastic (Secondary)
Amps - Back-Up
13.00
Max. Head - Pumps
21 ft.
Max Head - Pumps
21 ft.
Max. Liquid Temp.
140 Degrees F
Duty
Continuos (Primary); Intermitent (Secondary)
Max. Flow (GPH) - Back-Up
2700
Impeller Material - Pumps
Polypropylene (Primary), Nylon (Secondary)
Max. Head (Ft.) - Back-Up
24
GPH of Water @ 0 Ft. of Head
2700 (Primary), 2040 (Secondary)
Shaft Seal Material - Pumps
Nitrile Rubber
Shaft Seal
Buna N Double Lip (Primary); Buna N Double Lip (Secondary)
Motor Type
PSC (Primary); Brush Type DC (Secondary)
Off Point
3 in
Voltage - Back-Up
12VDC
Impeller Material
Polypropylene (Primary); Nylon (Secondary)
Max. Flow (GPH) - Pumps
2700
Base Material
Polypropylene (Primary); Nylon (Secondary)
GPH of Water @ 10 Ft. of Head
1800 (Primary); 960 (Secondary)
Alarm Included
Yes
Item
Sump/Battery Back-Up System
Includes
Battery Box, Battery Charger, Check Valve
12VDC Battery Charger
900 mA
On Point (In.)
7 (Primary); 11.5 (Secondary)
GPH of Water @ 15 Ft. of Head
1200 (Primary); 360 (Secondary)
Off Point (In.)
3 (Primary); 9.5 (Secondary)
GPH of Water @ 5 Ft. of Head
2280 (Primary), 1530 (Secondary)
Discharge NPT
1-1/2" F
Primary Pump Maximum Head
21 ft
Secondary Pump Amps
13
Secondary Pump Body Material
ABS
Secondary Pump Duty Cycle
Intermittent
Primary Pump Duty Cycle
Continuous
Primary Pump Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
20.0 gpm (Primary); 6.0 gpm (Secondary)
Secondary Pump Flow Rate @ 15 Ft. of Head
6.0 gpm
Primary Pump Flow Rate @ 10 Ft. of Head
30.0 gpm
Secondary Pump Impeller Material
Nylon
Primary Pump HP
1/3 hp
Discharge Gender
Female
Discharge Standard
NPT
Primary Pump Body Material
Aluminum
Flow Rate @ 5 Ft. of Head
38.0 gpm (Primary); 25.5 gpm (Secondary)
Primary Pump Amps
5.2
Primary Pump Flow Rate @ 5 Ft. of Head
38.0 gpm
Secondary Pump Flow Rate @ 5 Ft. of Head
25.5 gpm
Alarm Application
Indoor
Primary Pump Shaft Seal Material
Nitrile Rubber
Secondary Pump Maximum Head
24 ft
Secondary Pump Rated Voltage
12V DC
Duty Cycle
Continuous; Intermittent
Secondary Pump Flow Rate @ 10 Ft. of Head
16.0 gpm
Primary Pump Flow Rate @ 15 Ft. of Head
20.0 gpm
Primary Pump Impeller Material
Polypropylene
Switch Electrical Connection
Integral
Discharge
1-1/2 in FNPT
Standards
CSAc,us
Secondary Pump Flow Rate @ 10 ft of Head
16 gpm
Secondary Pump Current
13 A
Secondary Pump Horsepower
1/4 hp
Alert Output
Audio, Visual
Secondary Pump Switch Actuation
Vertical Float
Primary Pump Current
5.2 A
Primary Pump Switch Actuation
Vertical Float
Series
PC441
Feet of Head - Maximum
21.0 ft (Primary); 24.0 ft (Secondary)
Primary Pump Horsepower
1/3 hp
Includes Alarm
Alarm Included
Power Source
Vehicle Battery
Liquid Temperature - Maximum
140 Degrees F
Primary Pump Flow Rate @ 10 ft of Head
30 gpm
For Media Type
Clear Water

Description

Sump/Battery Back-Up System

Restrictions
