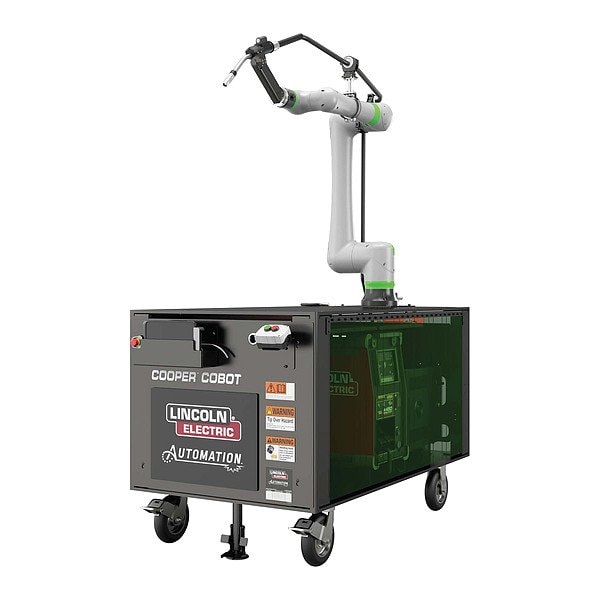

Shop LINCOLN ELECTRIC

CobotWeldingCell, MagnumPRO, MagnumPRO

  • Mfr # AD2489-16
  • Zoro # G815831841
product price:
$
161,240.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Features
New Generation II Design, Robotic Service and Support, The Cooper App - Lincoln Electric Created the Cooper App to Make It Simple for Anyone to Program and Create a Quality Weld, The Power Wave(R) R450 Power Source
Overall Depth
59 in
Work Surface Thickness
0.5 in
Standards
CSA
Work Surface Width
59 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AD2489-16
Zoro #
G815831841
UPC #
-
Country of Origin
United States

Dimensions

Overall Depth
59 in
Work Surface Thickness
0.5 in
Work Surface Width
59 in
Work Surface Depth
35 in
Overall Width
35 in
Overall Height
104 in
Work Envelope Radius
55.8 in
Minimum Wire Diameter
0.023 in (Solid), 0.035 in (Cored)
Maximum Wire Diameter
Magnum PRO
Wire Diameter Flux-Cored - Minimum
0.035 in
Wire Diameter Solid - Maximum
0.052 in
Wire Diameter Solid - Minimum
0.023 in
Wire Diameter Flux-Cored - Maximum
0.045 in

Details

Item
Cobot Welding Cell
Features
New Generation II Design, Robotic Service and Support, The Cooper App - Lincoln Electric Created the Cooper App to Make It Simple for Anyone to Program and Create a Quality Weld, The Power Wave(R) R450 Power Source
Standards
CSA
Includes
AutoDrive(R) 4R100 Wire Feeder, FANUC(R) CRX Robot with Tablet-Based Teach Pendant, Fault Reset Palmstation, Generation II Universal Cart, Heavy-Duty Casters, MAGNUM(R) PRO Air-Cooled Wire-Brake Welding Torch, Power Wave(R) R450 Robotic Welding Power Source, Stabilizing Kickstand, The Cooper App
Color
Black, Red, White
Input Voltage
208/230/400/460/575V
Series
Power Wave
Work Surface Pattern
Round Holes in Grid Pattern
Application
Agricultural Equipment Manufacturing, High-Mix Job Industries, Mechanical Contracting and Piping, Part Resurfacing and Reconditioning, Repair and Remanufacturing, Roof and Bridge Trusses, Steel Fabricating and Metal Service, Training and Educational Programs
Weight
895 lb
Phase
Single/Three
Welding Processes
Circular Welding, Editing/Customizing, Linear Welding, Multipass Welding, Optimized Angles, Stitch Welding, Work and Travel Angles
For Material Type
Steel
Input Frequency
50/60 Hz
Polarity
DC
Welding Mode
CC/CV
MIG Welding Minimum Output Current
40 A
MIG Welding Output @ Duty Cycle
300 A @ 29 V, 100%, 450 A @ 36.5 V, 100%
Maximum Wire Feed Speed
800 in/min
MIG Gun Type
MIG Gun
Operating System
Mobile Download, Pendant
Model
550 A
Work Surface Hole Spacing
2 in
Remote Connection Type
12-Pin (Lincoln)
Minimum Wire Feed Speed
50 in/min
MIG Welding Maximum Output Current
MAGNUM(R) PRO Air-Cooled Wire-Brake Torch
Amperage Range
5-550 A
For Wire Type
Flux-Cored, Solid
Enhanced Process
Flux-Cored (FCAW), Flux-Cored Gas-Shielded (FCAW-G), MIG (GMAW)
MIG Gun Series
Magnum PRO
Rated Output @ Duty Cycle (MIG)
300 A @ 29 V, 100%, 450 A @ 36.5 V, 100%
MIG Gun Model
MAGNUM(R) PRO Air-Cooled Wire-Brake Torch
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Amperage MIG - Minimum
40 A
Welding Power Source Type
CC/CV
Amperage MIG - Maximum
550 A

Description

Cobot Welding Cell

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
