Shop LINCOLN ELECTRIC

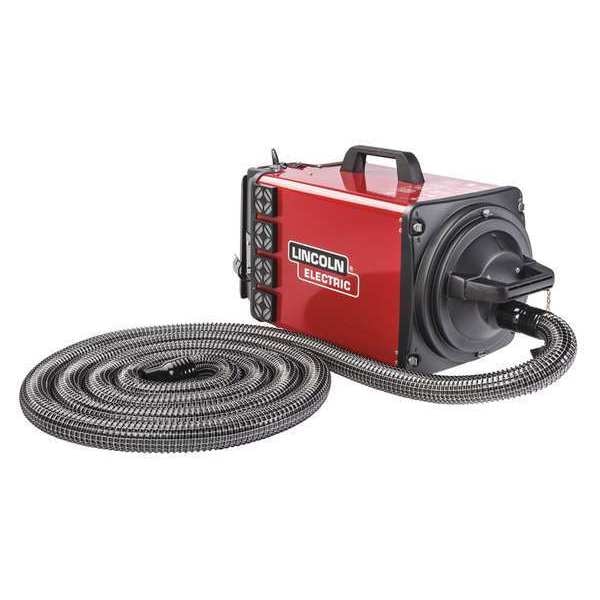

Fume Extractor, 55/115 CFM, dBA 74,120V, 9A

  • Mfr # K652-1

  • Zoro # G1711841

product price:  $5,202.99
/ea
Free Shipping & Returns

Key Features

Features
Manually-Operated Filter Cleaning System, Quiet Operation, Simple to Configure, Two Fan Speeds
Filter Type
Reusable Cartridge Filter
Application
Designed For The Removal And Filtration Of Welding Fumes
Series
X-Tractor 1 Fume Gun
Includes
(2) Spare Sets of Motor Brushes 12 ft. (3.6M), Adapters:1-3/4 in (45 Mm) to 2 in (50 mm) 1-3/4 in (45 mm) to 1-1/2 in (38 mm), Flexible Hose - 16 ft. (5.0M) Long X 1-3/4 in (45Mm) I.D. Two Hose-To-Tube
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K652-1
Zoro #
G1711841
UPC #
015082343662
Country of Origin
Norway

Dimensions

Height (In.)
13 1/4 in
Depth (In.)
15 3/4 in
Width (In.)
26 3/4 in
Extraction Arm Length (Maximum)
16 ft
Housing Height
13.3 in
Housing Depth
15.8 in
Housing Width
26.8 in
Extraction Arm Diameter
1.8 in
Power Cord Length
12 ft

Details

Item
Portable Fume Extractor
Features
Manually-Operated Filter Cleaning System, Quiet Operation, Simple to Configure, Two Fan Speeds
Filter Type
Reusable Cartridge Filter
Application
Designed For The Removal And Filtration Of Welding Fumes
Series
X-Tractor 1 Fume Gun
Includes
(2) Spare Sets of Motor Brushes 12 ft. (3.6M), Adapters:1-3/4 in (45 Mm) to 2 in (50 mm) 1-3/4 in (45 mm) to 1-1/2 in (38 mm), Flexible Hose - 16 ft. (5.0M) Long X 1-3/4 in (45Mm) I.D. Two Hose-To-Tube
Input Voltage
120V AC
Sound Level dBA
74
Hz
50/60
Motor HP
Two 1.3
Filter Media
2.8 sq m (30 sq ft)
Air Flow (CFM)
55/115
Input (Amps)
15 A
Sound Level
74 dB
Current
15 A
Motor Horsepower (Maximum)
2 13/32 hp
Includes Extraction Arm
Yes
Filter Area
0.9 pies cuad.
Maximum Air Flow
115 cfm
Power Source
Corded
Compatible Filter Manufacturer Part Number
KP2069-1
Frequency
50 Hz, 60 Hz
Phase
Single
Process
Removal and Filtration of Welding Fume
Power Source - TS Only
Corded

Description

Portable Fume Extractor, Maximum Air Flow 115 cfm, Extraction Arm Diameter 1.8 in, Extraction Arm Length (Maximum) 16 ft, Sound Level 74 dB, Filter Area 0.9 pies cuad., Filter Type Reusable Cartridge Filter, Input Voltage 120V AC, Motor Horsepower (Maximum) 2 13/32 hp, Series X-Tractor 1 Fume Gun, Compatible Filter Manufacturer Part Number KP2069-1, Current 15 A, Features Manually-Operated Filter Cleaning System, Quiet Operation, Simple to Configure, Two Fan Speeds
