  9. MIG Welder, Easy-MIG 140, Single-Phase, 120V AC, 30 to 140A DC, 20 %

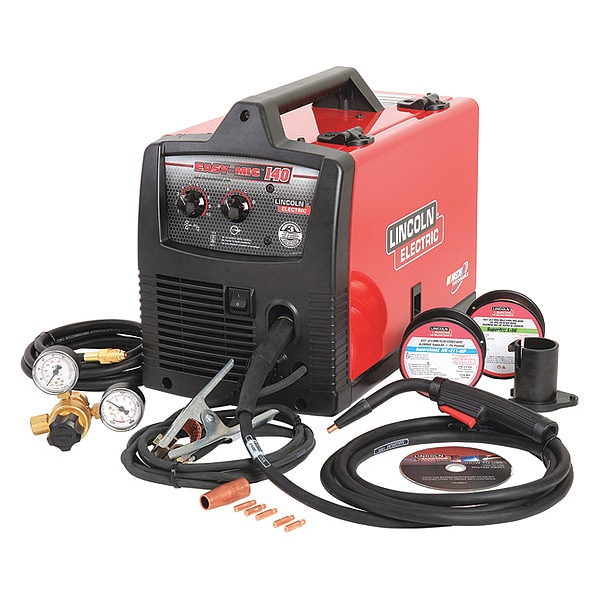

Lincoln Electric MIG Welder, Easy-MIG 140, Single-Phase, 120V AC, 30 to 140A DC, 20 % K2697-1 - main

MIG Welder, Easy-MIG 140, Single-Phase, 120V AC, 30 to 140A DC, 20 %

  • Mfr # K2697-1

  • Zoro # G1900726

product price: $858.99
/ea
Free Shipping & Returns

Key Features

Series
Easy-MIG 140
Input Voltage
120V AC
Welded Material
Mild Steel, Aluminum, Stainless Steel
Mild Steel - Material Thickness
24 ga to 3/16 in
Phase
Single-Phase
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2697-1
Zoro #
G1900726
UPC #
015082689609
Country of Origin
Mexico

Dimensions

Mild Steel - Material Thickness
24 ga to 3/16 in
Overall Depth
17.9 in
Overall Height
13.7 in
Wire Size
0.025 in to 0.030 in
Overall Width
10.15 in
Aluminum - Material Thickness
22 to 10 ga
Maximum Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
For Minimum Material Thickness
24 ga (Steel)
Minimum Wire Diameter
0.025 in (MIG-Steel), 0.030 in (Flux-Cored)
For Maximum Material Thickness
5/16 in (Steel)

Details

Item
MIG Welder
Series
Easy-MIG 140
Input Voltage
120V AC
Welded Material
Mild Steel, Aluminum, Stainless Steel
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Handheld Portable
Application
Farm, Home, Shop
Rated Output
90A @ 19.5V DC
Input Amps
20
Includes
0.025 - 0.035 in. wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1), 0.025 in & 0.035 in contact tips, Gas nozzle for MIG welding (KH725), Gasless nozzle for Flux-Cored welding (KH726), Harris 3000290 Gas Regulator (S25805) and 52 in. hose (S19303) for use with Ar/CO2 or CO2 gases, Magnum 100L gun and 10 ft cable assembly with brass connection and 4-pin MS-Type connection for trigger control (K530-6), Sample spool of .025 in. (0.6 mm) diameter SuperArc L-56 premium MIG wire, Sample spool of .035 in. (0.9 mm) diameter Innershield NR-211-MP flux-cored wire, Work clamp and 10 ft. cable
Duty Cycle
20 %
Output Range
30 to 140A DC
Features
Precise Wire Drive, Spool Gun Ready, Tool-less Design, Drive Roll and Nozzle Storage
Standards
CSA Certified
MIG Welding Output @ Duty Cycle
90 A @ 19.5 V, 20%
Maximum Wire Feed Speed
500 in/min
MIG Welding Minimum Output Current
30 A
MIG Welding Maximum Output Current
140 A
Plug Type
5-15P
For Wire Type
Flux-Cored, Solid
Minimum Wire Feed Speed
50 in/min
Weight
50 lb
Welding Mode
CV
Input Frequency
60 Hz
Color
Red
For Material Type
Mild Steel, Stainless Steel
Amperage Range
30 to 140 A
Polarity
DC
Model
K2697-1

Description

MIG Welder, Series Easy-MIG 140, Input Voltage 120V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Flux-Cored), 0.035 in (Solid), Maximum Wire Feed Speed 500 in/min, Model K2697-1, MIG Welding Output @ Duty Cycle 90 A @ 19.5 V, 20 Percent

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
