  9. Plasma Cutter, 20 -60A, Inverter, 80 PSI

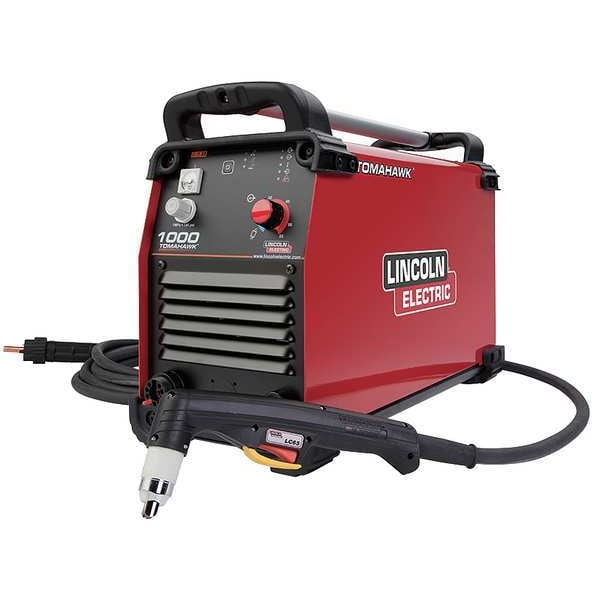

Lincoln Electric Plasma Cutter, 20 -60A, Inverter, 80 PSI K2808-1 - main

Plasma Cutter, 20 -60A, Inverter, 80 PSI

  • Mfr # K2808-1

  • Zoro # G8559555

product price: $4,673.99
/ea
Free Shipping & Returns

Key Features

Welding Processes
Plasma Cutting
Application
Metal Cutting
Overall Depth (In.)
22.1 in
Series
Tomahawk 1000
Overall Width (In.)
8 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2808-1
Zoro #
G8559555
UPC #
015082884875
Country of Origin
Poland

Dimensions

Overall Depth (In.)
22.1 in
Overall Width (In.)
8 1/2 in
Overall Height (In.)
15.2 in
Cable Length (Ft.)
25
Overall Depth
22.1 in
Overall Height
15.2 in
Overall Width
8.5 in
For Maximum Material Thickness
1 1/2 in
For Minimum Material Thickness
3/4 in
Cutting Cable Length
25 ft
Ground Cord Length
25 ft

Details

Item
Plasma Cutter
Welding Processes
Plasma Cutting
Application
Metal Cutting
Series
Tomahawk 1000
Input Voltage
208 V AC, 575 V AC
Includes
LC65 Hand Torch with 25 ft Cable, Work Clamp & Cable
PSI
80
Rated Output
1/3 A
Design
Inverter
OCV
270V DC
Cutting Capacity (In.)
1 1/4 in
Duty Cycle
100 %
Input (Amps)
37.8A
Features
Continuous Output Control, Engine Drive Compatible, Front Panel Purge Control, Touch Start System
For Material Type
Aluminum, Brass, Copper, Mild Steel, Stainless Steel
Required Air Flow
4.6 cfm
Color
Red
Maximum Pressure - Air Compressor
87 psi
Maximum Output Current
60 A
Phase
Three-Phase
Plasma Cutting Minimum Output Current
20 A
Plasma Torch Type
Handheld
Standards
CSA, ISO
Max. Input Current
37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase)
Cutting Configuration
Plasma Cutting
Plasma Cutter Model
K2808-1
Input Frequency
50/60 Hz
Plasma Cutting Output @ Duty Cycle
40 A @ 96 V, 100%, 60 A @ 104 V, 50%
Weight
31.75 kg
Effective Input Current
37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase)
Plug Type
Bare Leads
Plasma Gas Type
Air
Open Circuit Voltage
270 V DC

Description

Plasma Cutter, Cutting Configuration Plasma Cutting, Effective Input Current 37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase), For Material Type Aluminum, Brass, Copper, Mild Steel, Stainless Steel, For Maximum Material Thickness 1 1/2 in, For Minimum Material Thickness 3/4 in, Input Frequency 50/60 Hz, Input Voltage 208 V AC, 575 V AC, Max. Input Current 37.8 A @ 208 V (Single-Phase), 37.8 A @ 575 V (Three-Phase), Open Circuit Voltage 270 V DC, Phase Three-Phase
