  9. Plasma Cutter, Red, 60 Hz, 230 V AC, 28 lb

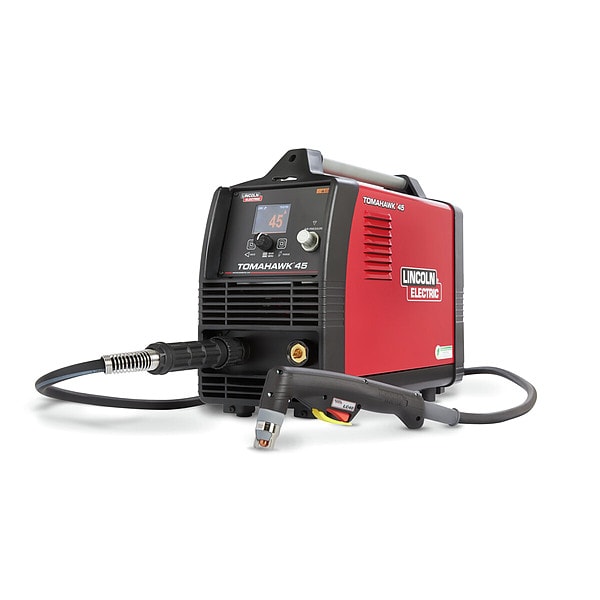

Lincoln Electric Plasma Cutter, Red, 60 Hz, 230 V AC, 28 lb K5458-1 - main

Plasma Cutter, Red, 60 Hz, 230 V AC, 28 lb

  • Mfr # K5458-1

  • Zoro # G511854250

product price: $3,449.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
230 V AC
Series
Tomahawk 625
Includes
Air Regulator, Pressure Gauge, Shoulder Strap, Work Clamp
Features
Internal Water Separator, LCD Screen, 2.8 in, Select Lincoln Electric Engine Drive Compatible, Touch Start Initiation
Plasma Cutting Minimum Output Current
15 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K5458-1
Zoro #
G511854250
UPC #
015082700137
Country of Origin
Poland

Dimensions

Power Cord Length
10 ft
For Minimum Material Thickness
2 mm
Overall Depth
18.9 in
Overall Height
15.2 in
Overall Width
8.5 in
For Maximum Material Thickness
3/4 in
Cutting Cable Length
20 ft
Ground Cord Length
20 ft

Details

Item
Plasma Cutter
Input Voltage
230 V AC
Series
Tomahawk 625
Includes
Air Regulator, Pressure Gauge, Shoulder Strap, Work Clamp
Features
Internal Water Separator, LCD Screen, 2.8 in, Select Lincoln Electric Engine Drive Compatible, Touch Start Initiation
Plasma Cutting Minimum Output Current
15 A
Phase
Single-Phase
For Material Type
Aluminum, Brass, Stainless Steel, Steel
Plasma Cutter Model
45
Plasma Cutting Output @ Duty Cycle
30A @ 100%(AC), 40A @ 60%(AC), 45A @ 45%(AC)
Required Air Flow
70psi @ 125-200SCFH (5 Bar @ 80 Liters/min)
Welding Processes
Plasma Cutting
Maximum Output Current
45 A
Cutting Configuration
Standard Cutting
Color
Red
Plasma Gas Type
Air, N2 (Nitrogen)
Effective Input Current
23A @230V AC (Single-Phase)
Max. Input Current
23A @ 230V AC (Single-Phase)
Open Circuit Voltage
396 V DC
Plasma Torch Type
Handheld
Plug Type
6-50P
Weight
28 lb
Input Frequency
60 Hz
Maximum Pressure - Air Compressor
80 psi

Description

Plasma Cutter, Cutting Configuration Standard Cutting, Effective Input Current 23A @230V AC (Single-Phase), For Material Type Aluminum, Brass, Stainless Steel, Steel, For Maximum Material Thickness 3/4 in, For Minimum Material Thickness 2 mm, Input Frequency 60 Hz, Input Voltage 230 V AC, Max. Input Current 23A @ 230V AC (Single-Phase), Open Circuit Voltage 396 V DC, Phase Single-Phase, Plasma Cutter Model 45, Maximum Output Current 45 A, Plasma Cutting Minimum Output Current 15 A
