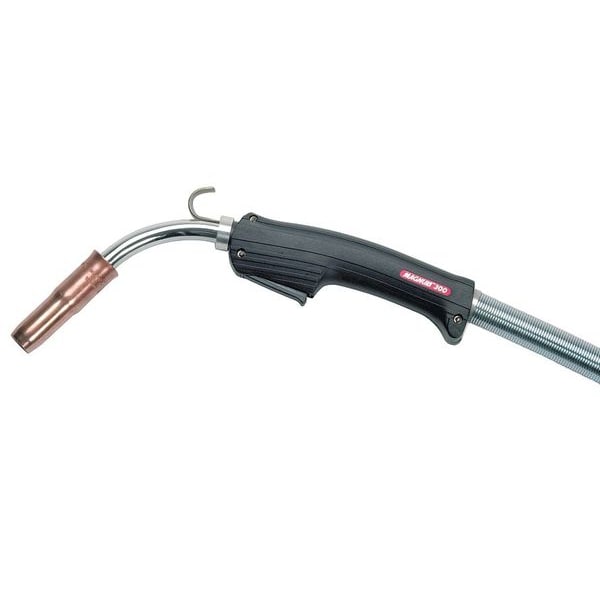

Lincoln Electric Welding Gun, 300A, 035-, 045 In, Flux-Core K470-2 - main

Welding Gun, 300A, 035-, 045 In, Flux-Core

  • Mfr # K470-2

  • Zoro # G7529365

product price:  $737.99
/ea
Free Shipping & Returns

Key Features

Amps
300 A
Wire Size
0.035 in to 0.045 in
Rotation Deg.
0 Degrees
Neck Tube Type
Fixed
Handle Type
Curved
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K470-2
Zoro #
G7529365
UPC #
015082067100
Country of Origin
Mexico

Dimensions

Wire Size
0.035 in to 0.045 in
Cable Length (Ft.)
15 ft
Neck Tube Size
Short
Maximum Wire Diameter
0.045 in
Cable Length
15 ft
Neck Tube Radius
Short

Details

Item
MIG Gun
Amps
300 A
Rotation Deg.
0 Degrees
Neck Tube Type
Fixed
Handle Type
Curved
Series
Magnum 300
Amps AC
300 A
Duty Cycle (%)
60%
Trigger
Standard
Neck Tube Material
Metal
Application
MIG Welding
MIG Gun Number
Magnum 300
Neck Tube Angle
60 Degrees
Tip Series
Magnum 300
Duty Cycle
60 %
Nozzle Series
Magnum 400A
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Weight
9 lb
Includes
Cable Liner, Contact Tip, Gas Diffuser, Gas Nozzle Insulator, Gun Tube (60 Degrees )
Liner Series
KP42-25-15
Compatible with Model
Magnum 300 Welding Gun
Wire Feed Type
Push
MIG Gun Type
MIG Gun
Features
Abrasion-Resistant, Extruded Rubber Jacket - Adds Strength and Long Life to the Cable, Classic Curved Handle - Lightweight and Balanced, Providing a Comfortable Grip to Reduce Fatigue, Gun Tube Design - Armored with an Electrically Insulated Metal Jacket Optimizing Fine Wire Welding Performance, One-Piece Modular Trigger Assembly - Molded Out of High Heat Resistant Material to Withstand Head and Spatter and Ensure Long Life, Popular Magnum(R) Gun Intended for Most 0.035 to 0.045 in (0.9 to 1.1 Mm) Wire Diameter Applications in Job Shops, Production or Manufacturing
Cooling Method
Air-Cooled
Gas Diffuser Number
KP54A
For Rear Connection Type
Lincoln
Compatible with Brand
Lincoln
Maximum Current
300 A
Trigger Type
Standard
Model
Magnum 300
MIG Gun Model
Magnum 300
Compatible Welder Model
Magnum PRO Curve 300
For Wire Type
Flux-Cored, Solid
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Compatible Welder Series
Magnum PRO Curve
For Gas Type
CO2 (Carbon Dioxide)
Amperage - Maximum
300 A
MIG Gun Series
Magnum 300
Compatible Brand
Lincoln Electric
Contact Tip Series
Magnum 400A

Description

MIG Gun, MIG Gun Type MIG Gun, Cooling Method Air-Cooled, Series Magnum 300, Maximum Current 300 A, Duty Cycle 60 Percent, For Gas Type CO2 (Carbon Dioxide), Maximum Wire Diameter 0.045 in, Cable Length 15 ft, For Rear Connection Type Lincoln, Handle Type Curved, Trigger Type Standard, Neck Tube Type Fixed, Neck Tube Angle 60 Degrees , For Wire Type Flux-Cored, Solid, Model Magnum 300, Tip Series Magnum 300, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW)
