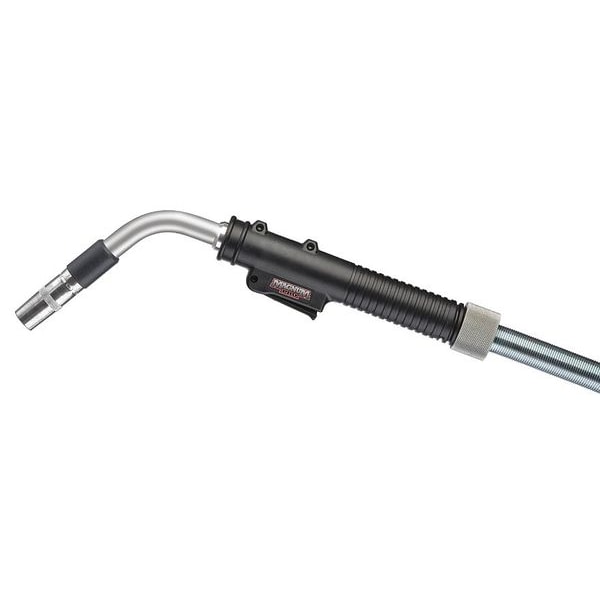

Lincoln Electric Welding Gun, CO2, 350A, Mixed Gas 285A, K2652-2-10-45 - main

Welding Gun, CO2, 350A, Mixed Gas 285A,

  • Mfr # K2652-2-10-45

  • Zoro # G7017507

product price: $880.99
/ea
Free Shipping & Returns

Key Features

Amps
350 A
Wire Size
0.035 in to 0.078 in
Rotation Deg.
0 Degrees
Neck Tube Type
Fixed
Handle Type
Barrel Style
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2652-2-10-45
Zoro #
G7017507
UPC #
015082891781
Country of Origin
Mexico

Dimensions

Wire Size
0.035 in to 0.078 in
Cable Length (Ft.)
15 ft
Neck Tube Size
Short
Maximum Wire Diameter
5/64 in
Cable Length
15 ft

Details

Item
MIG Gun
Amps
350 A
Rotation Deg.
0 Degrees
Neck Tube Type
Fixed
Handle Type
Barrel Style
Series
Magnum PRO 350
Amps AC
350 A
Duty Cycle (%)
100%
Trigger
Standard
Neck Tube Angle
62 Degrees
Neck Tube Material
Metal
Application
Flux Cored Arc Welding, MIG Welding
MIG Gun Number
Magnum Pro 350
Type
Air Cooled
Tip Series
Magnum Pro 350
Gas Diffuser Number
KP2746-1, KP2746-1-B25, KP2746-2, KP2746-2-B25, KP2747-1, KP2747-1-B25, KP2747-2, KP2747-2-B25, KP3141-1, KP3141-1-B25, KP3155-1, KP3155-1-B25, KP3360-1, KP3360-1-B25
Duty Rating
Heavy Duty
Maximum Current
350 A
MIG Gun Type
Air-Cooled
Cooling Method
Air-Cooled
Compatible with Model
Magnum Pro 350
Wire Feed Type
Push
Compatible with Brand
Lincoln
Includes
0.625 in. (15.9 mm) Thread-On Gas Nozzle with 1/8 in. (3.2 mm) recess (KP2742-1-62R), Contact Tip (KP2744-045), Gun Connector (K466-10), Gun Liner (KP44-3545-15), Thread-On Diffuser (KP2746-1)
Duty Cycle
100 %
Weight
11 lb
Trigger Type
Standard
Features
High Quality Copper and Aircraft Grade Aluminum Parts, Secure Lock Gun Tube
Liner Series
KP44-116-15, KP44-116-25, KP44-3545-15, KP44-3545-25, KP44-564-15, KP44-564-25, KP44N-3545-15
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
For Rear Connection Type
Lincoln-Compatible
Nozzle Series
KP2742-1-62F, KP2742-1-62F-B25, KP2742-1-62R, KP2742-1-62R-B25, KP2742-1-62S, KP2742-1-62S-B25, KP2742-2-62F, KP2742-2-62F-B25, KP2742-2-62R, KP2742-2-62S, KP2742-2-62S-B25, KP2743-1-62F, KP2743-1-62F-B25, KP2743-1-62R, KP2743-1-62R-B25, KP2743-1-62S, KP2743-1-62S-B25, KP2743-1-75F, KP2743-1-75F-B25, KP2743-1-75R, KP2743-1-75R-B25, KP2743-1-75S, KP2743-1-75S-B25, KP2743-2-62F, KP2743-2-62F-B25, KP2743-2-62R, KP2743-2-62R-B25, KP2743-2-62S, KP2743-2-62S-B25, KP2743-2-75F, KP2743-2-75F-B25, KP2743-2-75R, KP2743-2-75R-B25, KP2743-2-75S, KP2743-2-75S-B25, KP3160-1-50F, KP3160-1-50F-B25, KP3160-1-50R-B25, KP3160-1-50S, KP3160-1-50S-B25, KP3161-1-62F, KP3161-1-62F-B25, KP3161-1-62R, KP3161-1-62R-B25, KP3161-1-62S, KP3161-1-62S-B25
Model
Magnum Pro 350

Description

MIG Gun, MIG Gun Type Air-Cooled, Cooling Method Air-Cooled, Series Magnum PRO 350, Maximum Current 350 A, Duty Cycle 100 Percent, Maximum Wire Diameter 0.078 in, Cable Length 15 ft, For Rear Connection Type Lincoln-Compatible, Handle Type Barrel Style, Trigger Type Standard, Neck Tube Type Fixed, Neck Tube Angle 62 Degrees , Model Magnum Pro 350, Tip Series Magnum Pro 350, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Application Flux Cored Arc Welding, MIG Welding
