Shop LINEMASTER

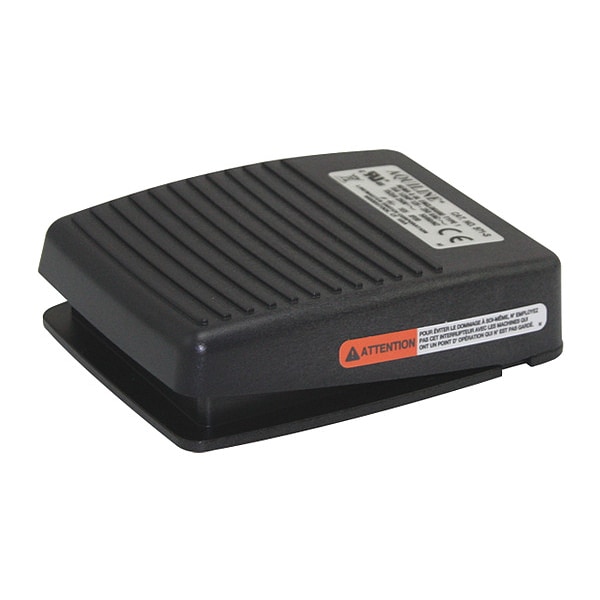

Aquiline Maintained - POLYMERIC

  • Mfr # 971-DJ

  • Zoro # G6032599

product price:  $46.29
/ea

Key Features

Contact Form
SPST-NO
NEMA Rating
1
Voltage Rating
125/250V AC
Color
Gray
HP
1, 1/2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
971-DJ
Zoro #
G6032599
UPC #
-
Country of Origin
United States

Dimensions

Width
3 7/16 in
Depth
1 3/32 in
Length
4 in
Manufacturers Warranty Length
1 yr
Overall Width
3.44 in
Overall Height
1.09 in
Length (Straight Wireway)
4 in
Overall Depth
4 in
Manufacturer Warranty Length
1 yr

Details

Item
Foot Switch
Contact Form
SPST-NO
NEMA Rating
1
Voltage Rating
125/250V AC
Color
Gray
HP
1, 1/2
Material
Zinc
Standards
94-Vi, CE, cURus, RoHS
Action
Maintained
Features
(2) Mounting Holes, Non-Skid
IP Rating
IP20
Current Rating
12
Cord Type
No Cord
Product Type
Foot Switch
Housing Materials
Cast Zinc
ENCLOSURE
NEMA Type 1 • UL ENCLOSURE Type 1 • EN 60529 Degree Of Protection • IP20
FEATURES & BENEFITS
Maximum versatility, total performance Non-skid base pad 2 holes provided for rigid mounting to Floor or equipment Twin model has Electrical Interlock feature
Switch Type
Electrical
MATERIALS
SPDT, DPDT, Two-Stage, Momentary or Maintained Operation Rustproof and corrosion proof cast zinc cover and formed steel base Raised ribs on treadle for positive traction during operation Integrated adjustable strain relief clamp accommodates cord sizes from .250 Dia. to .400 Dia.
Switch Connections
Solder terminal, Quick-connect terminal
Actions
Single Stage Maintained
Cable Entries
Adjustable strain relief clamp
Circuitries
SPST-NO (Form "A")
Housing Colors
Black
Electrical Ratings
12A 1HP 250 VAC, 1/2HP 125 VAC
PURPOSE
Versatile Compact Design
Horsepower
0.5 HP @ 125V AC, 1 HP @ 250V AC
Series
Atlas
Includes Foot Guard
No Guard Included
Hazardous Location Specification
Not Rated
AC Contact Rating
12 A @ 250 V
Power Source
Electrically Corded
Includes Potentiometer
No Potentiometer Included
Resistance Properties
Corrosion Resistant, Fire Resistant
NEMA Enclosure Rating
1
Number of Pedals
1
Termination Connection Type
Quick Connect
Power Source - TS Only
Electrically Corded

Description

Foot Switch, SPST-NO Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, Current Rating 12, Material Zinc, Color Gray, Maintained Action, Cord Type No Cord, Length 4 in, Width 3 7/16 in, Depth 1 3/32 in, HP 1, 1/2, Cord Length Not Applicable, IP Rating IP20, Features (2) Mounting Holes, Non-Skid, Standards 94-Vi, CE, cURus, RoHS, Manufacturers Warranty Length 1 yr
