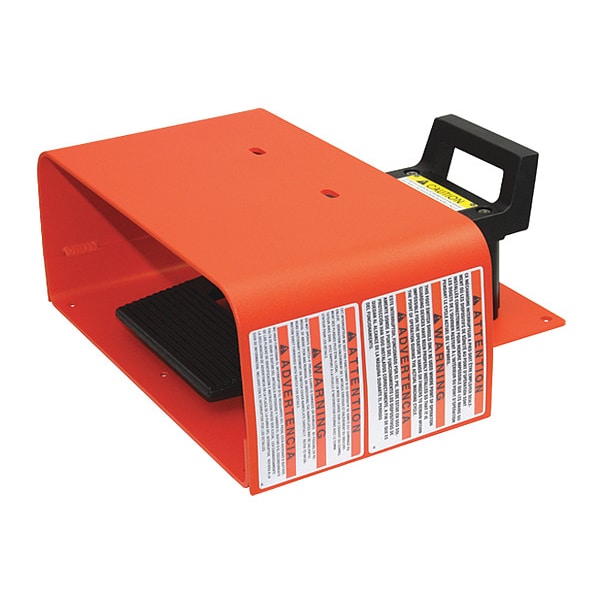

Linemaster Explosion Proof - Industrial 600 602-EX - main

Explosion Proof - Industrial 600

  • Mfr # 602-EX

  • Zoro # G6021371

product price: $1,022.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
NEMA Rating
13, 2, 3, 4, 6, 6P, 7D, 9F
Voltage Rating
125/250V AC/28V DC
Color
Orange
HP
1, 3/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
602-EX
Zoro #
G6021371
UPC #
-
Country of Origin
United States

Dimensions

Width
11 in
Depth
4 3/8 in
Length
10 1/4 in
Manufacturers Warranty Length
1 yr
Overall Width
11 in
Overall Height
4.38 in
Length (Straight Wireway)
10 1/4 in
Manufacturer Warranty Length
1 yr
Overall Depth
10.25 in

Details

Item
Foot Switch
Contact Form
SPDT
NEMA Rating
13, 2, 3, 4, 6, 6P, 7D, 9F
Voltage Rating
125/250V AC/28V DC
Color
Orange
HP
1, 3/4
Material
Aluminum
IP Rating
IP68
Current Rating
15/10
Features
(4) Mounting Holes
Action
Momentary
Cord Type
No Cord
Standards
cULus, RoHS
Product Type
Foot Switch
ENCLOSURE
CLASS I • DIVISION 1 • Group D • CLASS II • Group F & G • CLASS I • ZONE 1 • GROUP IIA • NEMA Type 2, 3, 4, 6, 6P, 13, 7D, & 9F • UL ENCLOSURE 2, 3, 4, 6, 6P, 7, 9, & 13 • EN 60529 Degree Of Protection IP68 • Meets IEC 60601-2-2
FEATURES & BENEFITS
Non sparking cast aluminum housing 4 holes provided for rigid mounting to the floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time
Electrical Ratings
15A 125 VAC, 10A, 250 VAC, 3/4 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max. 3A 28 VDC
Circuitries
SPDT
Shields & Guards
Guarded
Actions
Momentary
MATERIALS
Aluminum full guard with integral base plate painted Alert Orange Integral handle for ease of moving All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Industrial Explosion Proof foot switch Series 600 offers added environmental protection against water and oil, through the addition of sealing O-rings on the pivot rod and between the cover and base This is accomplished by increasing the thickness of the housing walls, without negating the integrity of the metal to metal contact required to qualify as explosion proof
PURPOSE
Equipment for Hazardous Locations
Switch Type
Electrical
Horsepower
0.75 HP @ 125V AC, 1 HP @ 250V AC
Includes Potentiometer
No Potentiometer Included
Number of Pedals
1
DC Contact Rating
3 A @ 28 V
Includes Foot Guard
Guard Included
NEMA Enclosure Rating
13, 2, 3, 4, 6, 6P, 7, 9
Series
Explosion Proof 600
Termination Connection Type
3/4"-14 NPT Conduit Hole
Hazardous Location Specification
Class I, Div 1, Group D, Class II, Div 1, Group F, G
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Power Source
Electrically Corded
Resistance Properties
Explosion Proof

Description

Foot Switch, SPDT Contact Form, Voltage Rating 125/250V AC/28V DC, NEMA Rating 13, 2, 3, 4, 6, 6P, 7D, 9F, Current Rating 15/10, Material Aluminum, Color Orange, Momentary Action, Cord Type No Cord, Length 10 1/4 in, Width 11 in, Depth 4 3/8 in, HP 1, 3/4, Cord Length Not Applicable, IP Rating IP68, Features (4) Mounting Holes, Standards cULus, RoHS, Manufacturers Warranty Length 1 yr

Restrictions

WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Nickel carbonyl, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
