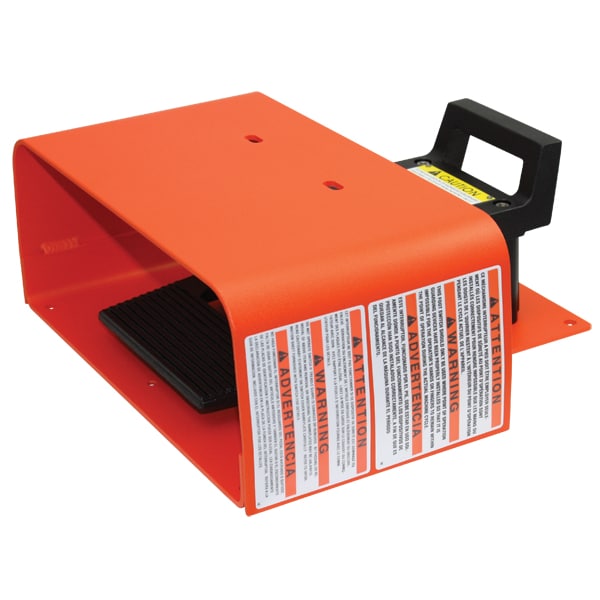

Linemaster Linemaster Explosion Proof Ft 604-EX - main

Linemaster Explosion Proof Ft

  • Mfr # 604-EX

  • Zoro # G3152838

product price: $1,000.99
/ea
Sold in multiples of 5 for $5,004.95
Free Shipping & Returns

Key Features

Action
Momentary
FEATURES & BENEFITS
Non sparking cast aluminum housing 4 holes provided for rigid mounting to the floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time
Switch Type
Electrical
Circuitries
DPDT
MATERIALS
Aluminum full guard with integral base plate painted Alert Orange Integral handle for ease of moving All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Industrial Explosion Proof foot switch Series 600 offers added environmental protection against water and oil, through the addition of sealing O-rings on the pivot rod and between the cover and base This is accomplished by increasing the thickness of the housing walls, without negating the integrity of the metal to metal contact required to qualify as explosion proof
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
604-EX
Zoro #
G3152838
UPC #
-
Country of Origin
United States

Details

Item
Foot Switch
Action
Momentary
FEATURES & BENEFITS
Non sparking cast aluminum housing 4 holes provided for rigid mounting to the floor or equipment The two pedal model is supplied with a divider bar between pedals which helps prevent accidental operation of both pedals at one time
Switch Type
Electrical
Circuitries
DPDT
MATERIALS
Aluminum full guard with integral base plate painted Alert Orange Integral handle for ease of moving All models supplied with a 3/4"-14 N.P.T. threaded rigid metal conduit entry and mounting provisions in the base plate Industrial Explosion Proof foot switch Series 600 offers added environmental protection against water and oil, through the addition of sealing O-rings on the pivot rod and between the cover and base This is accomplished by increasing the thickness of the housing walls, without negating the integrity of the metal to metal contact required to qualify as explosion proof
ENCLOSURE
CLASS I • DIVISION 1 • Group D • CLASS II • Group F & G • CLASS I • ZONE 1 • GROUP IIA • NEMA Type 2, 3, 4, 6, 6P, 13, 7D, & 9F • UL ENCLOSURE 2, 3, 4, 6, 6P, 7, 9, & 13 • EN 60529 Degree Of Protection IP68 • Meets IEC 60601-2-2
PURPOSE
Equipment for Hazardous Locations
Electrical Ratings
15A 125 VAC, 10A, 250 VAC, 3/4 H.P. 125 VAC, 1 H.P. 250 VAC, Heavy Pilot Duty 250 VAC Max. 3A 28 VDC
Shields & Guards
Guarded
Actions
Momentary
Number of Pedals
1
Power Source
Electrically Corded
Hazardous Location Specification
Class I, Div 1, Group D, Class II, Div 1, Group F, G
Series
Explosion Proof 600
Product Type
Foot Switch

Description

Foot Switch, Momentary Action
